SEUIC (Dongji) / Keypad mobile terminals
AUTOID Q7-Grip: Keypad mobile terminals

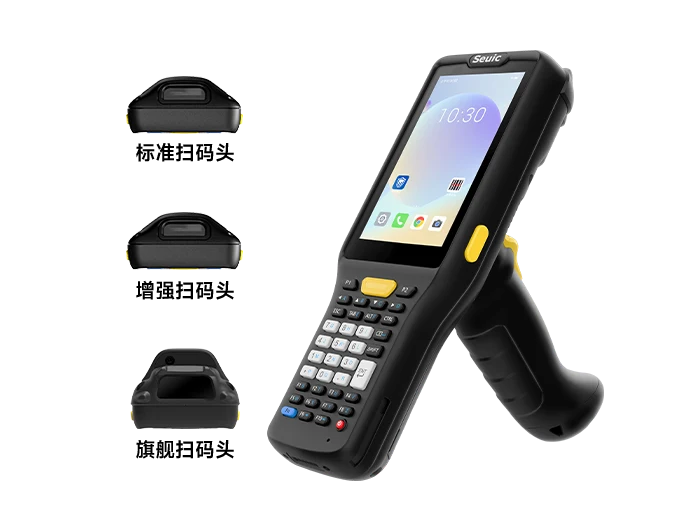

SEUIC (Dongji) AUTOID Q7-Grip is a rugged keypad Android handheld with a detachable pistol grip for scan-intensive warehouse and outdoor work. The official page lists a 4 inch display, selectable long-range 2D scan engines, Android 14, a removable 5200 mAh battery and IP65 protection.
Suggested profiles: high-throughput warehouse, outdoor, production and scan-intensive operations
- Operating system
- Android 14.0
- Memory
- 4 GB RAM / 64 GB flash
- Display
- 4 inch WVGA, 480 x 800 pixels
- Scanning
- Standard-range, high-density, advanced far-range 2D scan engine and camera options
- Battery
- Detachable 3.7 V Li-ion battery, average 5200 mAh, with built-in backup battery
- Wireless
- WLAN and WWAN options are listed; exact bands and carrier profile require confirmation
Browse by device capability
AUTOID Q7-Grip / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- High-bay warehouse and yard scanning
- Distribution, replenishment and parcel operations
- Production or field work that benefits from a pistol grip and physical keys
Browse by device capability
- A detachable pistol grip and physical keys support repetitive scan work and long-range handling.
- 29-, 38- and 47-key layouts and several 2D scan engines must be matched to the operator task.
- Low-temperature touch, glove mode, removable power and microSD expansion cover demanding field workflows.
- IP65 and manufacturer-listed drop and tumble figures provide a defined starting point for a site pilot.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Operating system | Android 14.0 |
|---|---|
| Processor | Qualcomm octa-core, 2.0 GHz |
| Memory | 4 GB RAM / 64 GB flash |
| Display | 4 inch WVGA, 480 x 800 pixels |
| Touch | Industrial low-temperature capacitive touch with thick-glove and wet-hand modes |
| Storage expansion | Micro SD support up to 256 GB SDHC |
Data capture
| Scanning | Standard-range, high-density, advanced far-range 2D scan engine and camera options |
|---|---|
| Camera | 13 MP autofocus rear camera |
Connectivity
| Wireless | WLAN and WWAN options are listed; exact bands and carrier profile require confirmation |
|---|
Power and physical
| Dimensions | 203 x 72 x 27 mm; width is 70 mm excluding side keys |
|---|---|
| Weight | 513 g with battery and pistol grip; 438 g with battery without grip |
| Battery | Detachable 3.7 V Li-ion battery, average 5200 mAh, with built-in backup battery |
| Keypad | 29, 38 or 47-key layout options with two side scan keys and backlit buttons |
Environmental
| Environment | Operating -20 to +50 C; storage -40 to +70 C with battery; 5-95% RH non-condensing |
|---|
Other configuration
| Connectivity | USB Type-C, OTG and charging-cradle support |
|---|---|
| Durability | IP65; multiple 2 m drops and 1000 half-meter tumbles listed by the manufacturer |
| ESD | +/-15 kV air discharge and +/-8 kV direct discharge listed |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Choose the key layout, scan engine, grip, memory and regional radio configuration before ordering.
- Test cold-area startup, gloves, wet touch, scan distance, screen visibility, application input and battery rotation.
- Confirm MDM, Android security, WLAN, cellular, charging and operator-carry requirements for the destination site.
Deployment accessories
- Plan the detachable pistol grip, hand strap, protective case, single-device cradle and four-slot battery charger.
- Match spare batteries and charging capacity to the shift and carry method rather than to a headline runtime.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Test standard, high-density and far-range codes at the required distance, angle, lighting and motion.
- 02
Measure key response, scan latency, application input, radio roaming, charging and offline recovery over a representative shift.
- 03
Record the exact firmware, OS, key layout, scan engine, grip, accessories and country configuration before rollout.
Project intake
AUTOID Q7-Grip / Start with enough context to make the next step useful.
Choose the closest project intent and describe only non-confidential workflow, application and deployment requirements.
