SEUIC (Dongji) / Keypad mobile terminals
AUTOID Q7-Cold: Keypad mobile terminals

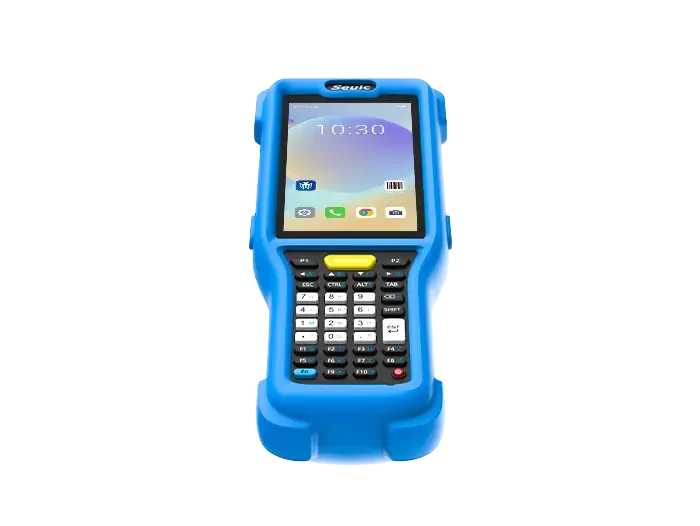

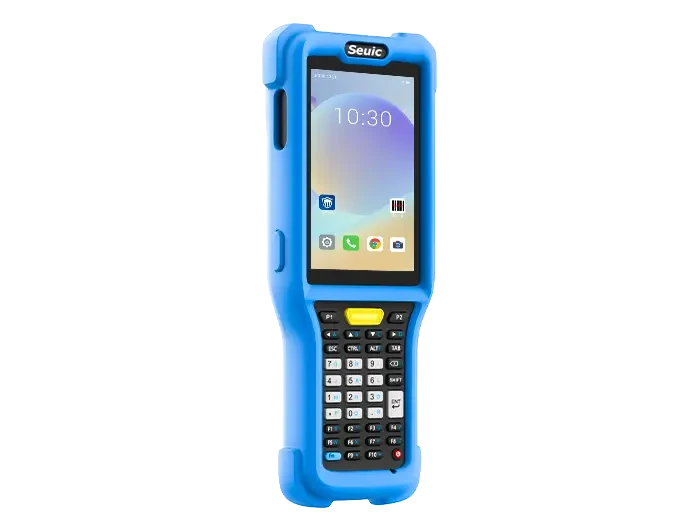

SEUIC (Dongji) AUTOID Q7-Cold is a cold-chain keypad Android handheld with low-temperature touch, heating and anti-fog features. The official page lists a 6200 mAh battery, optional far-range 2D scanning, Android 14 and IP67 protection; freezer-zone performance must be checked on the ordered configuration.
Suggested profiles: cold-chain warehousing, fresh-food logistics and glove-friendly scan operations
- Operating system
- Android 14.0
- Memory
- 4 GB RAM / 64 GB flash
- Display
- 4 inch WVGA, 480 x 800 pixels
- Scanning
- Standard-range, advanced far-range 2D scan engine and camera options
- Battery
- Detachable 3.7 V Li-ion battery, average 6200 mAh, with built-in backup battery
- Dimensions
- 203 x 72 x 27 mm; width is 70 mm excluding side keys
Browse by device capability
AUTOID Q7-Cold / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Fresh-food and pharmaceutical cold storage operations
- Cold-chain receiving, sorting and dispatch
- Glove-heavy warehouse work requiring physical scan keys
Browse by device capability
- Low-temperature touch, heating and anti-fog features target cold-chain handoffs and freezer-zone work.
- The 6200 mAh battery and physical keys support longer glove-based scan tasks when the shift plan is validated.
- Standard and far-range scan engines must be matched to the rack, pallet and label conditions.
- IP67 and manufacturer-listed cold, drop and tumble figures are starting points for a controlled pilot.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Operating system | Android 14.0 |
|---|---|
| Processor | Qualcomm octa-core, 2.0 GHz |
| Memory | 4 GB RAM / 64 GB flash |
| Display | 4 inch WVGA, 480 x 800 pixels |
| Touch | Low-temperature capacitive touch with thick-glove and wet-hand modes |
| Storage expansion | Micro SD support up to 256 GB SDHC |
Data capture
| Scanning | Standard-range, advanced far-range 2D scan engine and camera options |
|---|---|
| Camera | 13 MP autofocus rear camera with flash and 1080p video listed |
Power and physical
| Dimensions | 203 x 72 x 27 mm; width is 70 mm excluding side keys |
|---|---|

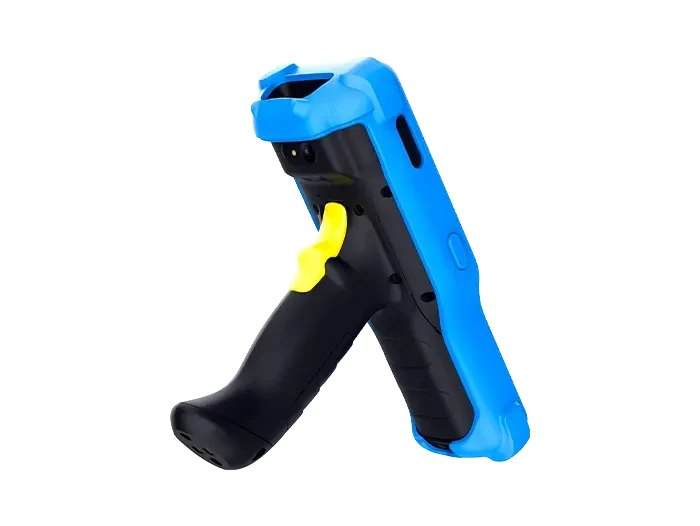

| Weight | 495 g with battery and pistol grip; 420 g with battery without grip |

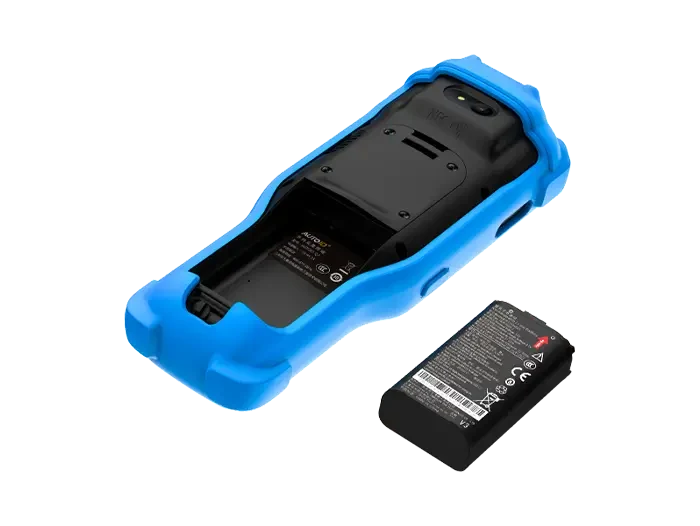

| Battery | Detachable 3.7 V Li-ion battery, average 6200 mAh, with built-in backup battery |
| Keypad | 38 backlit keys with two side scan keys |
Environmental

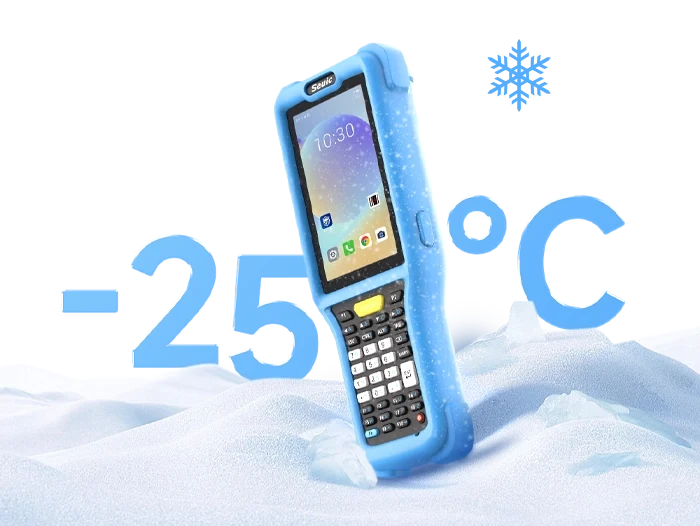

| Environment | Operating -25 to +50 C; storage -40 to +70 C with battery; 5-95% RH non-condensing |
|---|
Other configuration
| Connectivity | USB Type-C and OTG; charging-cradle support is listed |
|---|---|
| WLAN | IEEE 802.11a/b/g/n/ac, 2.4 GHz and 5 GHz dual-band Wi-Fi 6-ready |
| Durability | IP67; multiple 1.8 m drops and 1000 half-meter tumbles listed by the manufacturer |
| ESD | +/-15 kV air discharge and +/-8 kV direct discharge listed |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Confirm the battery, heating mode, grip, scan engine, key mapping and charging setup for the cold environment.
- Test condensation, display response, scanner distance, gloves, battery rotation and application recovery across temperature transitions.
- Confirm destination radio configuration, MDM policy, cleaning process and cold-chain accessory plan before quotation.
Deployment accessories
- Scope the pistol grip, hand strap, spare batteries, charging cradle, battery charger and protective parts for temperature transitions.
- Define battery storage and charging locations so cold batteries are handled within the manufacturer and site procedures.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Run representative paper and screen codes at freezer temperature, transition points, distance, angle and lighting.
- 02
Record warm-up, anti-fog behavior, touch input, scan latency, radio roaming and battery endurance on the exact SKU.
- 03
Freeze the cold operating envelope, firmware, scan profile, key map, accessory set and acceptance criteria.
Project intake
AUTOID Q7-Cold / Start with enough context to make the next step useful.
Choose the closest project intent and describe only non-confidential workflow, application and deployment requirements.
