SEUIC (Dongji) / Vision cameras

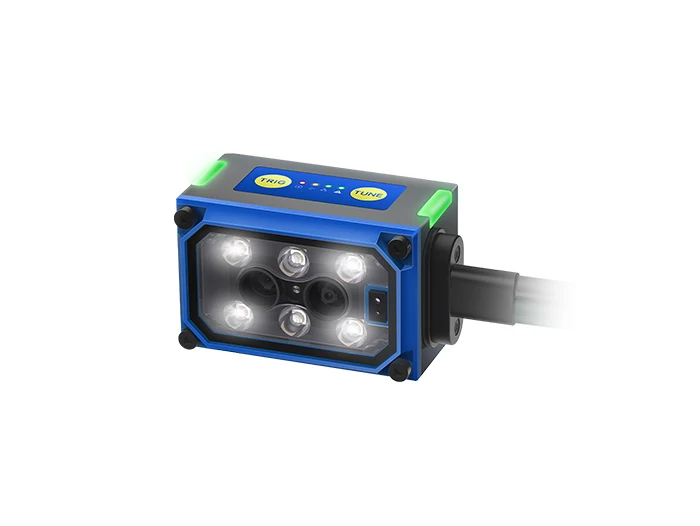

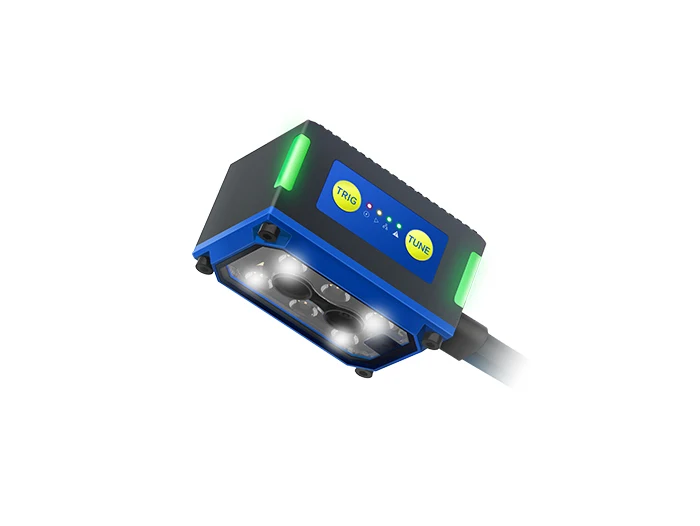

SEV200: Vision cameras
SEV200 is listed in the vision cameras portfolio for camera-based industrial inspection and identification. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: industrial inspection, identification and machine-vision workflows
- Enclosure protection level |
- IP65
- Serial communication transmission speed |
- 115200 / 57600 / 38400 / 19200 / 9600bps
- weight
- 133 ± 5g
- sensor
- CMOS image sensor with global shutter
- image pixels |
- 1.3 million, 1080x1280
- Lighting source |
- White LED
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where SEV200 fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Quality inspection
- Presence and position checks
- Production traceability and automation
Key capabilities
- A vision-camera entry; optics, lighting, processing, interfaces and application logic require an engineering review.
- Portfolio fit: industrial inspection, identification and machine-vision workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Enclosure protection level | | IP65 |
|---|---|
| Operating temperature | | 0°~50°C |
| Storage temperature | | -20°C~70°C |
| Storage environment humidity | | 5% to 95% RH without condensation |
Data capture
| sensor | CMOS image sensor with global shutter |
|---|
Connectivity
| Serial communication transmission speed | | 115200 / 57600 / 38400 / 19200 / 9600bps |
|---|---|
| Protocols supported by serial communication | | RS232 |
| USB communication standard | | Compliant with USB2.0FullSpeed |
Power and physical
| Control the number of input connection ports | | 2 |
|---|---|
| Control the number of output connection ports | | 3 |
| Protocols supported by Ethernet | | TCP/UDP、ModbusTCP、EtherNet/lP、Profinet |
| weight | 133 ± 5g |
Environmental
| relative humidity | | 5% to 95% RH without condensation |
|---|---|
| Work environment | | No dust or corrosive gases |
Other configuration
| image pixels | | 1.3 million, 1080x1280 |
|---|---|
| Lighting source | | White LED |
| sights | | Laser Dot |
| Focus adjustment | | Binocular fixed focus |
| Vision Tool Inspection | | Line sequence detection, coil detection, presence/absence detection, color detection (color COMS version) |
| Visual Tool Identification | | 1D, 2D barcode recognition |
| Visual Tool Learning | | OCR |
| solution capability | Supports plan import/export and can store up to 32 plans |
| Control input input type | | Bidirectional voltage input |
| Control input maximum rating | | 30V |
| Control input minimum ON voltage | | ＜4V |
| Control input maximum OFF current | | 0.001A |
| Control Output Output Type | | 2-way optocoupler output |
| Control output maximum rating | | 30V |
| Control output maximum load current | | 1 output: 50mA or less Total 3 outputs: 100mA or less |
| Leakage current when control output is OFF | | 0.1mA or less |
| Residual voltage when control output is ON | | 1V or lower |
| Ambient brightness | | 0~10000lux |
| Supply voltage | | 10~30VDC |
| Current consumption | | 0.5~1.5A |
| size | 55mm x 35mm x 32mm |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
