SEUIC (Dongji) / Touch mobile terminals

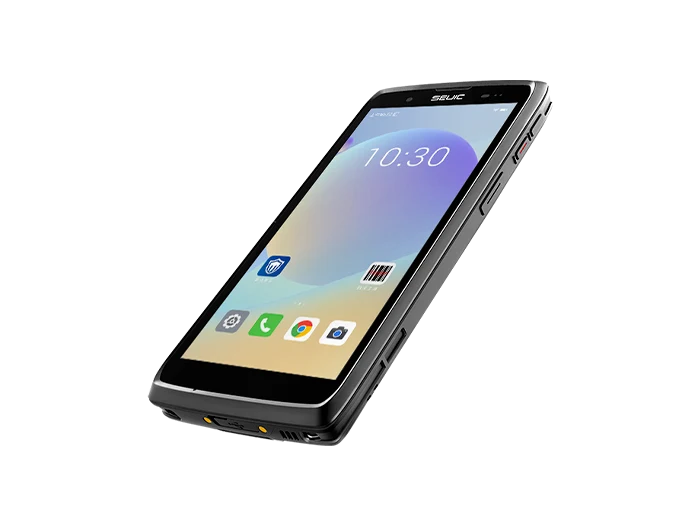

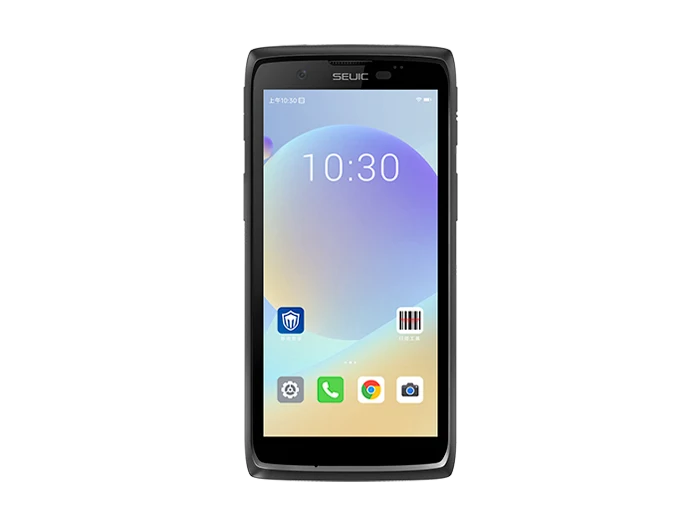

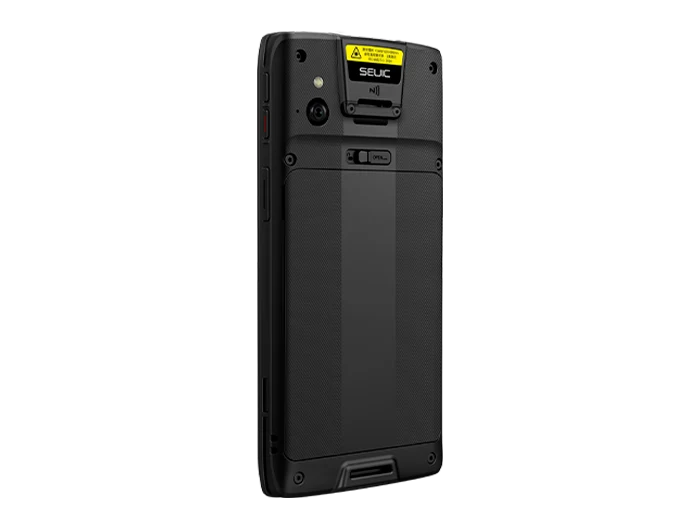

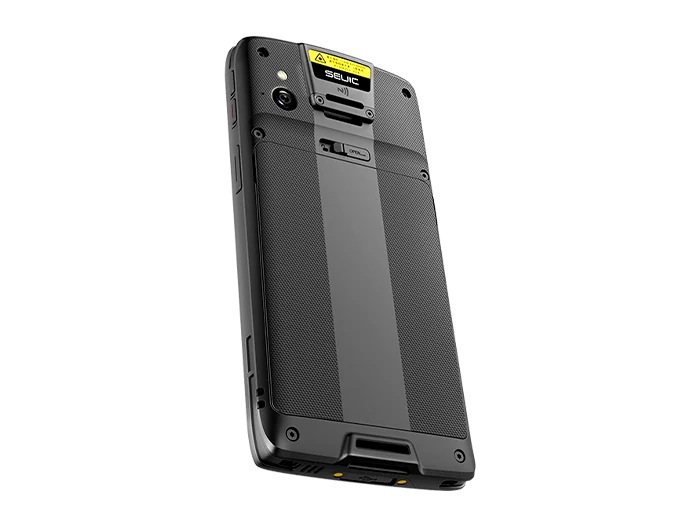

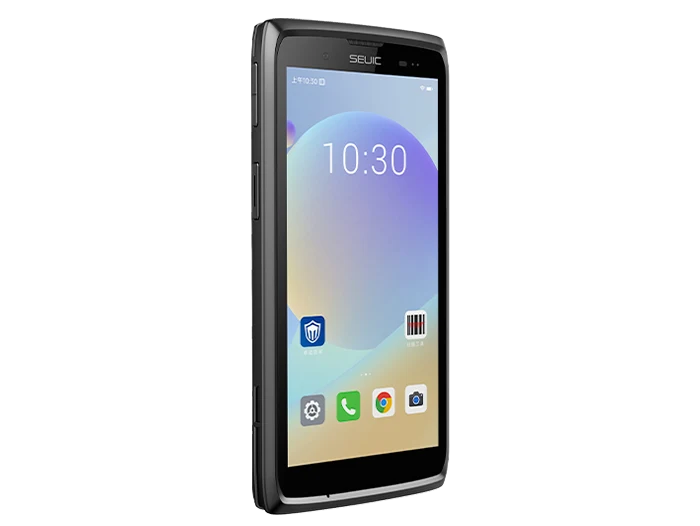

CRUISE GeP: Touch mobile terminals
CRUISE GeP is listed in the touch mobile terminals portfolio for touch-first mobile data capture. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: touch-first warehouse, retail, logistics and field applications
- CPU
- MTK8786 Octa-core 2.0 GHz
- Display
- 5.5-inch display, capacitive touch · 1440(H)×720P(W)
- Scan |
- X3PC(HD) 1D/2D image scanning engine (optional) · X3PC(MR) 1D/2D image scanning engine (optional)
- power supply
- Removable 4.4V 5000mAh lithium-ion rechargeable battery, supports 6000mAh lithium-ion battery option
- Drop specifications
- 1.5 meters
- Interface/communication
- Waterproof Type C USB interface, supports Type C headphones (analog headphones not included); supports USB2.0 HighSpeed; supports OTG; supports fast charging
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where CRUISE GeP fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Warehouse and logistics applications
- Retail inventory and store operations
- Field inspection and service
Key capabilities
- A full-touch mobile terminal entry; scan engine, network, OS and battery options require model-level confirmation.
- Portfolio fit: touch-first warehouse, retail, logistics and field applications.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | 5.5-inch display, capacitive touch · 1440(H)×720P(W) |
|---|---|
| CPU | MTK8786 Octa-core 2.0 GHz |
| operating system | Android 16 |
| User storage extension | TF card, compatible with up to 256GB |
| Operating temperature | | -20℃ to +55℃ / -4℉ to 131℉ |
| Storage temperature | | -40℃ to +70℃ (battery not included) |
| Electrostatic discharge (ESD) | | ±15kV air discharge, ±8kV direct discharge |
| system programming environment | Android Studio |
Data capture
| sensor | G-sensor, light sensor, distance sensor |
|---|---|
| Scan | | X3PC(HD) 1D/2D image scanning engine (optional) · X3PC(MR) 1D/2D image scanning engine (optional) |
| Camera | Front 5 million pixels (fixed focus); rear 13 million pixels (PDAF autofocus), supports flash + fill light; |
Connectivity
| Interface/communication | Waterproof Type C USB interface, supports Type C headphones (analog headphones not included); supports USB2.0 HighSpeed; supports OTG; supports fast charging |
|---|---|
| SIM interface | | Choose one of SIM card and TF card, compatible with hot swap |
| GPS | | | 1. GPS+GLONASS+Beidou+Galilieo, supports AGPS, L1 single-frequency GPS · 2. Compatible with single Beidou, RTK positioning design, optional configuration (not standard) |
| wireless connection | IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v/w (2.4G/5G dual-band WIFI) |
Power and physical
| power supply | Removable 4.4V 5000mAh lithium-ion rechargeable battery, supports 6000mAh lithium-ion battery option |
|---|---|
| Weight (including standard battery) | 275±5g (including battery, varies according to different configurations) |
Environmental
| Humidity | | 5% to 95% RH without condensation |
|---|---|
| Drop specifications | 1.5 meters |
Other configuration
| size | 157(H)×76(W)×14.4(T) |
|---|---|
| keyboard | Volume +, - keys, power on/off key, 2 side scan keys, function keys |
| Audio | Built-in rear single speaker (2W), built-in dual microphones (with noise reduction function) |
| Notification method | Sound, vibrator, LED light indication |
| store | 4GB + 64GB |
| Waterproof and dustproof industrial grade | IP67 |
| Impact Resistance | | 0.5m roller, 1000 turns, 2000 times |
| radio frequency band | | GSM: Qual Band(850/900/1800/1900Mhz) · TD-SCDMA: Band34, Band39 · WCDMA: Band1, Band5, Band8 · TDD-LTE: Band34, Band38, Band39, Band40, Band41 (all frequency bands) · FDD-LTE: Band1, Band3, Band 5, Band7, Band 8, Band20, Band28 |
| System software | Android 16.0 |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm scan handle, spare battery, cradle, protective case and MDM or application enrollment needs.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
