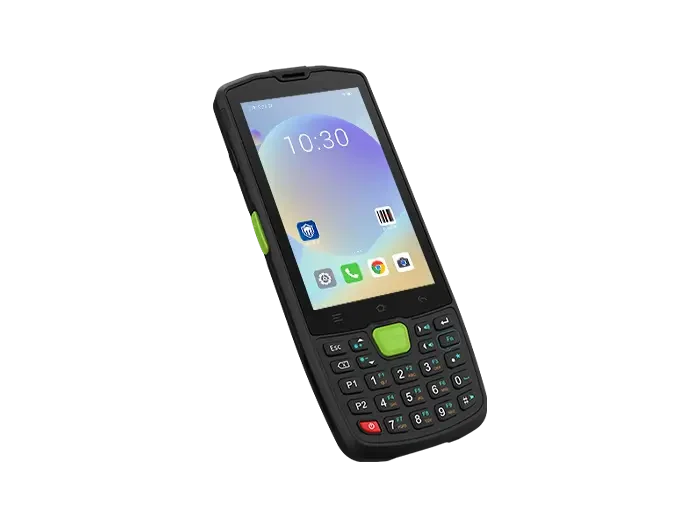

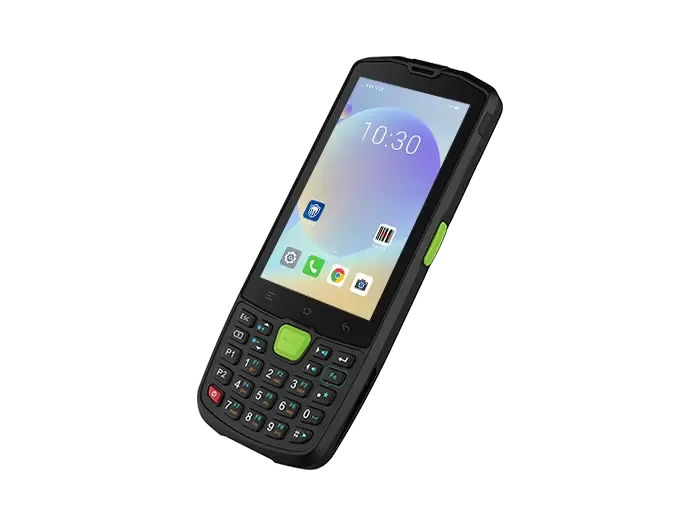

AUTOID Q9 Pro: Keypad mobile terminals
AUTOID Q9 Pro is listed in the keypad mobile terminals portfolio for fast operator-led data capture with physical input. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: high-throughput, glove-friendly and scan-intensive operations
- CPU
- MTK 8788, 8 cores, 2.0GHz
- Memory
- 2GB RAM/32GB Flash; 4GB RAM/64GB Flash
- Display
- 4-inch color full HD (480*800), 400nit
- scanning
- Optional: · X3P(SR) 1D/2D scan engine · X3P(HD) 1D/2D scan engine
- power supply
- User-removable 5200mAh (20.02Wh) lithium-ion rechargeable battery with built-in 60mAh (0.23Wh) lithium-ion backup battery (optional)
- Sealing level
- IP67 sealing rating (including battery)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where AUTOID Q9 Pro fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Distribution and sorting
- Manufacturing and line-side work
- Cold-chain or glove-use workflows
Key capabilities
- A keypad mobile terminal entry for repetitive scan work; key layout, scan engine, display and battery variant require review.
- Portfolio fit: high-throughput, glove-friendly and scan-intensive operations.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | 4-inch color full HD (480*800), 400nit |
|---|---|
| touch screen | Capacitive touch, supports glove touch/wet hand operation/double-click to wake up |
| CPU | MTK 8788, 8 cores, 2.0GHz |
| operating system | Android 10.0 (upgradeable to Android 13.0) |
| Memory | 2GB RAM/32GB Flash; 4GB RAM/64GB Flash |
| Storage temperature | -40℃ to 70℃/-40℉ to 158℉ (battery not included) |
| Electrostatic discharge (ESD) | ±15kV air discharge, ±8kV direct discharge |
Data capture
| interactive sensor technology | G-sensor (optional), light sensor, distance sensor, gyroscope (optional), electronic compass (optional) |
|---|---|
| scanning | Optional: · X3P(SR) 1D/2D scan engine · X3P(HD) 1D/2D scan engine |
| Camera | Front 5 million pixels; rear 13 million pixels (auto focus); · LED flash can generate balanced white light; supports flashlight mode + HDR |
| Near field communication (NFC) | Supports ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tags with encryption protocol (Mifare one S50, S70 and compatible cards) |
Connectivity
| SIM card | Nano SIM*1 |
|---|---|
| network connection | WWAN、WLAN |
| Interface/communication | Waterproof Type C USB interface; supports OTG |
| GPS | GPS, Beidou, GLONASS (three-in-one) |
| wireless connection | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w (2.4G/5G dual-band WIFI) |
Power and physical
| weight | 250g/8.82oz (including battery) |
|---|---|
| power supply | User-removable 5200mAh (20.02Wh) lithium-ion rechargeable battery with built-in 60mAh (0.23Wh) lithium-ion backup battery (optional) |
| button | Two dedicated scan buttons, one programmable button for push-to-talk or other purposes |
Environmental
| working temperature | 20℃ to 50℃/-4℉ to 122℉ |
|---|---|
| humidity | 5% to 95% RH without condensation |
| Sealing level | IP67 sealing rating (including battery) |
| rolling specifications | Withstands 1,000 drops from 1.6 feet/0.5 meters at room temperature without protective case |
| Drop specifications | Terminal only, withstands a 6 ft./1.8 m drop to marble. |
Other configuration
| size | 6.3" long x 2.61" wide x 0.64" high · 160mm long x 66.3mm wide x 16.2mm high |
|---|---|
| expansion slot | User-accessible Micro SD Card, supports up to 128GB |
| notify | Alert sound; multi-color LED; vibration (tactile feedback) |
| keyboard | 27-key numeric keypad with FN key; supports on-screen keyboard |
| Audio | Built-in dual speakers (1W); microphone with noise reduction function; supports TYPE C headphones |
| radio frequency band | GSM: Quad Band (900/1800Mhz) · TD-SCDMA: B34, B39; · WCDMA: B1, B5, B8; · CDMA 1x /EVDO: BC0; · TDD-LTE: B34, B38, B39, B40, B41; Support VoLTE function |
| data rate | 2.4 GHz: 802.11b/g/n, 2.412GHz-2.472GHz, up to 150 Mbps · 5 GHz: 802.11a/g/n/ac, 5.17GHz-5.825GHz, up to 433 Mbps |
| working channel | CH1-CH13, CH34-CH165 |
| Security and encryption | OPEN, WEP, WPA2-PSK (TKIP+AES), TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, etc. |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
