SEUIC (Dongji) / Keypad mobile terminals
AUTOID 3P: Keypad mobile terminals

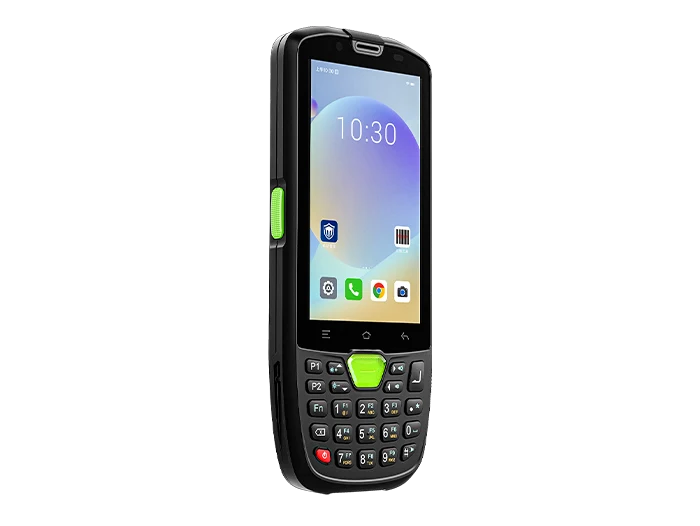

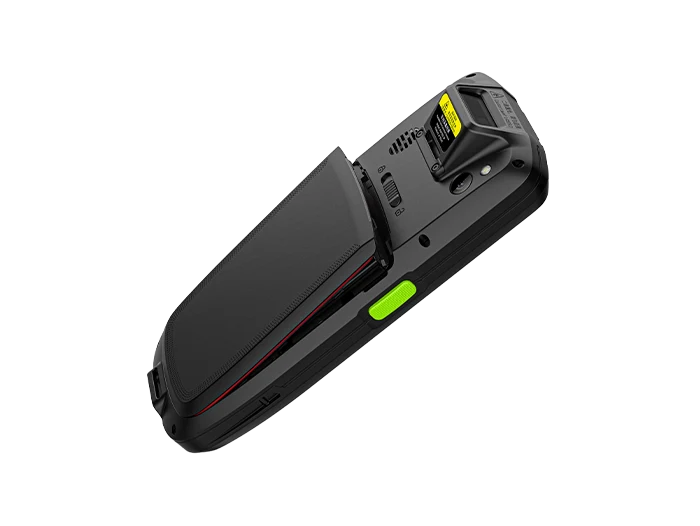

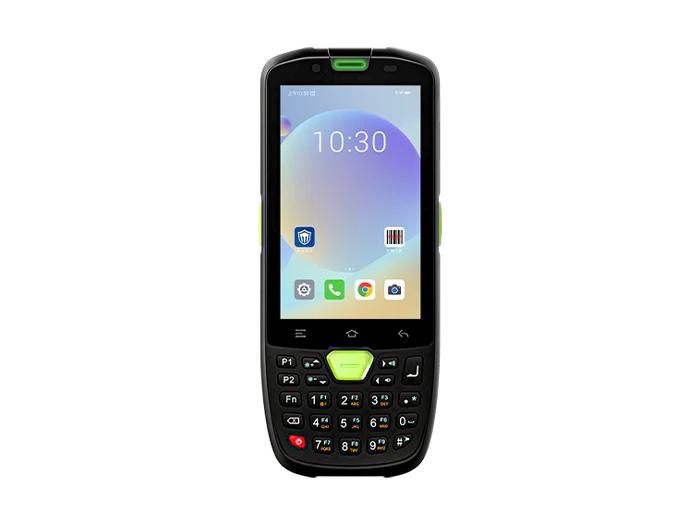

SEUIC (Dongji) AUTOID 3P is a keypad Android handheld for retail, logistics, warehouse and inspection work. Its official page lists a 25-key backlit layout, glove and wet-hand touch, 5200 mAh removable power, 2D scanning, IP65 sealing and a 1.8 m drop specification.
Suggested profiles: retail, logistics, warehouse and field-inspection scanning
- Operating system
- Android 12
- Memory
- 4 GB RAM / 64 GB ROM
- Display
- 4 inch industrial IPS display, 480 x 800 pixels, low-temperature resistant
- Scanning
- SEUIC 2D image scan engine and camera scanning
- Battery
- Detachable 3.85 V, 5200 mAh Li-ion battery; 5 V/2 A contact charging listed
- Dimensions
- 159 x 66.3 x 18.9 mm
Browse by device capability
AUTOID 3P / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Retail inventory and replenishment
- Logistics receiving, picking and dispatch
- Field inspection and service task capture
Browse by device capability
- Backlit physical keys provide direct input for repetitive retail and warehouse tasks.
- Glove and wet-hand touch modes support operators moving between indoor and field conditions.
- Removable 5200 mAh power, 2D scanning and microSD expansion cover a practical handheld baseline.
- IP65 and manufacturer-listed drop and tumble figures should be verified in the target operating environment.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Operating system | Android 12 |
|---|---|
| Processor | MTK octa-core, 2.0 GHz |
| Memory | 4 GB RAM / 64 GB ROM |
| Display | 4 inch industrial IPS display, 480 x 800 pixels, low-temperature resistant |
| Touch | Capacitive dual-mode touch for thick gloves and wet hands |
| Storage expansion | Micro SD support up to 256 GB |
Data capture
| Scanning | SEUIC 2D image scan engine and camera scanning |
|---|---|
| Camera | 13 MP autofocus rear camera with flash and 1080p video listed |
Power and physical
| Dimensions | 159 x 66.3 x 18.9 mm |
|---|---|
| Weight | 265 g including battery |
| Battery | Detachable 3.85 V, 5200 mAh Li-ion battery; 5 V/2 A contact charging listed |
| Keypad | 25 backlit keys |
Environmental
| Environment | Operating -20 to +55 C; storage -40 to +70 C; 5-95% RH non-condensing |
|---|
Other configuration
| Connectivity | USB Type-C and OTG; exact WLAN, WWAN and VoLTE scope requires confirmation |
|---|---|
| Durability | IP65; manufacturer lists multiple 1.8 m drops and 1000 tumbles at 0.5 m |
| Audio | Speaker, microphone, Type-C headset support and VoLTE listed |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Confirm scan engine, key layout, memory, charging method, VoLTE and country radio configuration before quotation.
- Test barcode quality, touch behavior, display visibility, application input, MDM policy and battery rotation on the exact unit.
- Validate the IP, drop and temperature claims against the actual handling, cleaning and worksite conditions.
Deployment accessories
- Scope the protective case, hand strap, single-device cradle, four-slot battery charger and screen protection.
- Define the charging contact, USB-C cable, spare-battery and operator-carry procedure for each shift.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Run representative 1D and 2D codes, including damaged, reflective, low-contrast and screen samples.
- 02
Test scan triggers, physical key mapping, wet and glove touch, radio roaming, reconnect and offline recovery.
- 03
Freeze the firmware, Android image, scan profile, MDM settings, accessory set and acceptance conditions.
Project intake
AUTOID 3P / Start with enough context to make the next step useful.
Choose the closest project intent and describe only non-confidential workflow, application and deployment requirements.
