SEUIC (Dongji) / Keypad mobile terminals
AUTOID 10: Keypad mobile terminals

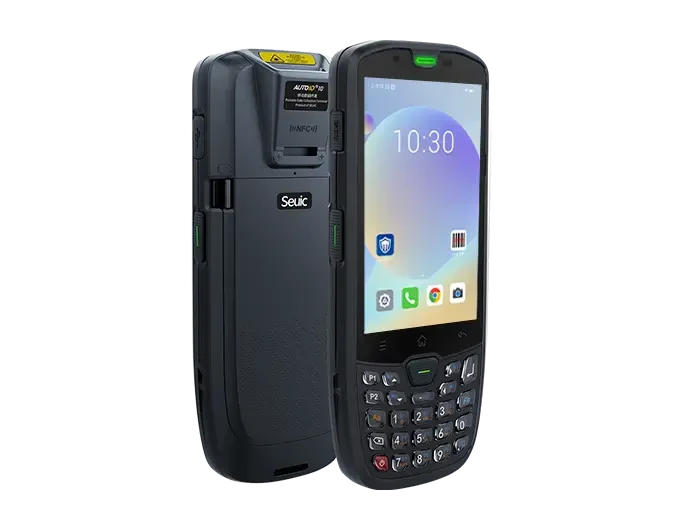

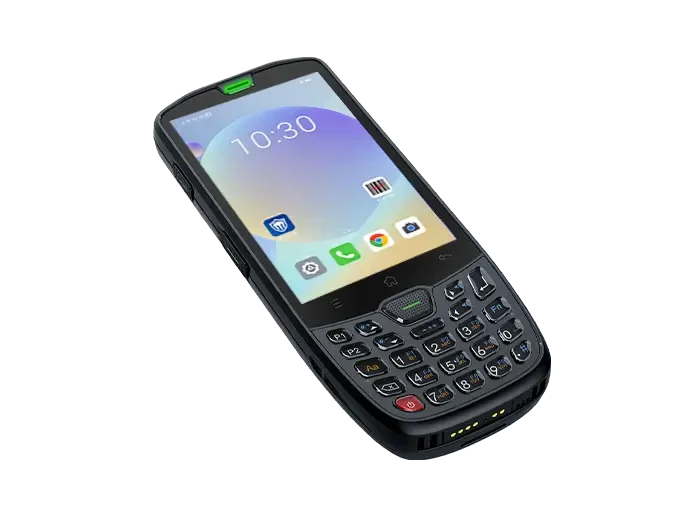

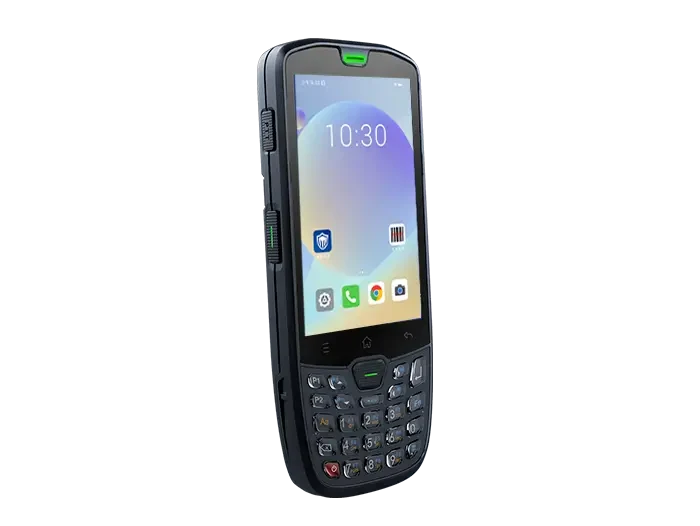

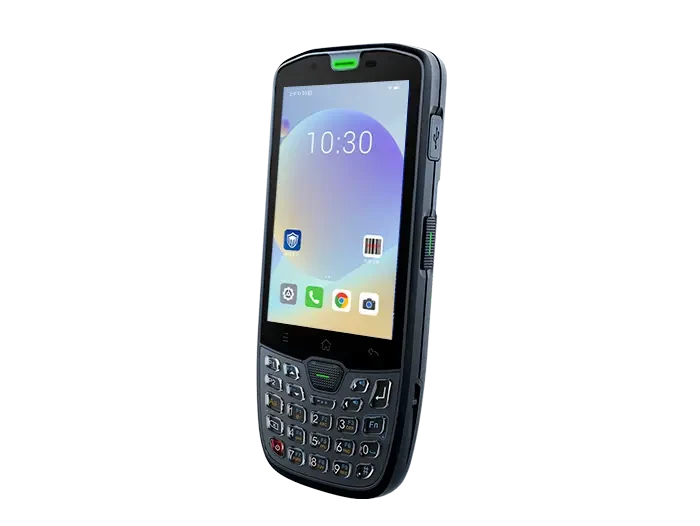

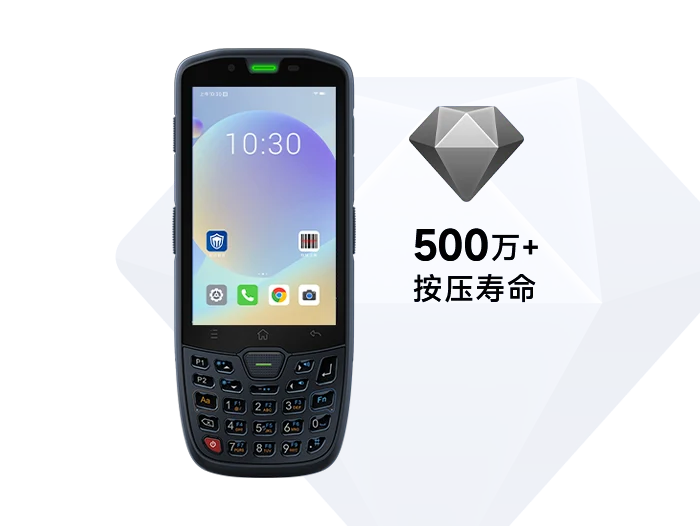

SEUIC (Dongji) AUTOID 10 is a keypad Android handheld for store, warehouse and production operations. Its official page lists a 27-key layout, Android 14, selectable 2D scan engines, a hot-swappable 5360 mAh battery, glove and wet-hand touch and IP67 protection.
Suggested profiles: store execution, warehouse, production and field operations
- Operating system
- Android 14 with GMS and AER listed
- Memory
- 4 GB LPDDR4 RAM / 64 GB UFS 2.1 ROM
- Display
- 4 inch IPS screen, 800 x 480 pixels
- Scanning
- SEUIC, Honeywell SR or Zebra SE5500 2D scan-engine options; camera scanning also listed
- Battery
- Detachable 5360 mAh battery with hot swap and 50 mAh spare battery
- Bluetooth
- Bluetooth 5.1 with BLE compatibility
Browse by device capability
AUTOID 10 / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Retail inventory and store execution
- Warehouse receiving, picking and replenishment
- Production and line-side barcode work
Browse by device capability
- A current Android 14 keypad platform with dedicated scan and PTT controls.
- Multiple scan-engine options let the project match capture performance to the code and working distance.
- Hot-swappable 5360 mAh power and glove or wet-hand input support repetitive shifts.
- IP67 protection and a manufacturer-listed 2 m drop specification support a controlled ruggedness pilot.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Operating system | Android 14 with GMS and AER listed |
|---|---|
| Processor | Qualcomm octa-core, 2.0 GHz |
| Memory | 4 GB LPDDR4 RAM / 64 GB UFS 2.1 ROM |
| Display | 4 inch IPS screen, 800 x 480 pixels |
| Touch | Capacitive touch with wet-hand and thick-glove modes |
| Storage expansion | Micro SD support up to 128 GB |
Data capture
| Scanning | SEUIC, Honeywell SR or Zebra SE5500 2D scan-engine options; camera scanning also listed |
|---|---|
| Camera | 5 MP fixed-focus front camera; 13 MP autofocus rear camera with flash and 1080p video |
Connectivity
| Bluetooth | Bluetooth 5.1 with BLE compatibility |
|---|
Power and physical
| Dimensions | 160.34 x 67.02 x 19.5 mm |
|---|---|
| Weight | 268 g including battery |
| Battery | Detachable 5360 mAh battery with hot swap and 50 mAh spare battery |
| Keypad | 27 keys: 24 front keys, two side scan keys and one PTT key |
Environmental
| Environment | Operating -20 to +50 C; storage -40 to +70 C; 5-95% RH non-condensing |
|---|
Other configuration
| Connectivity | USB Type-C and OTG; dual-band 802.11 a/b/g/n/ac/ax-ready WLAN listed |
|---|---|
| Durability | IP67; manufacturer lists multiple 2 m drops and 1000 tumbles at 0.5 m |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Select the scan engine, key map, PTT behavior, memory, battery and radio SKU before commercial review.
- Run the target application with physical keys, MDM, Wi-Fi roaming, scan triggers, battery rotation and charging.
- Confirm destination bands, certification, Android security lifecycle and accessory availability for the target market.
Deployment accessories
- Scope pistol grip, protective cover, hand strap, touch pen, screen protector, cradles and four-slot battery charging.
- Version the scan profile, key map, MDM enrollment and battery procedure with the deployment package.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Test each candidate scan engine with representative 1D, 2D, damaged, reflective and screen codes.
- 02
Measure key response, host input, radio roaming, battery use, charging and offline recovery over a representative shift.
- 03
Approve the exact scanner, OS, firmware, key profile, MDM policy, accessories and regional SKU before rollout.
Project intake
AUTOID 10 / Start with enough context to make the next step useful.
Choose the closest project intent and describe only non-confidential workflow, application and deployment requirements.
