UROVO / Barcode scanners
Q200: Barcode scanners

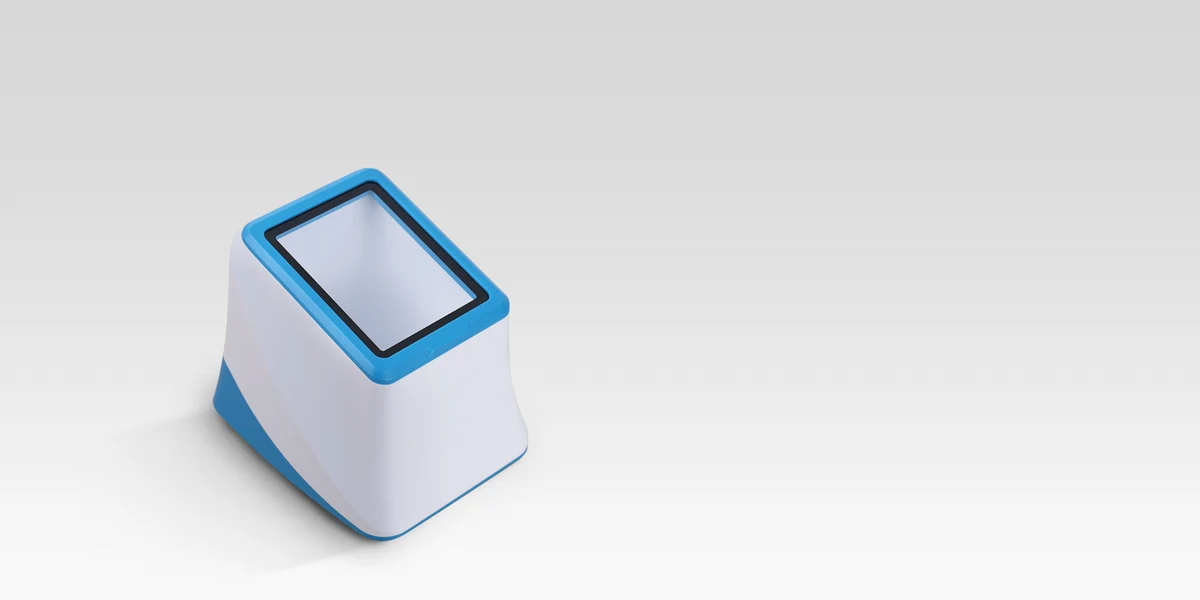

UROVO Q200 is a desktop barcode scanner for checkout, service-counter and workstation capture. The official page lists 1D/2D and screen-code reading, USB-HID or virtual serial operation, a 1.5 m drop specification and Windows, Android and Linux host compatibility; code mix and station geometry require testing.
Suggested profiles: desktop checkout, service-counter, parcel and workstation barcode capture
- Processor
- 32-bit RISC processor
- Barcode scope
- 1D/2D paper, PC and smartphone-screen codes; QR, PDF417 and Data Matrix listed
- Protection
- 1.5 m drop resistance listed
- Dimensions and weight
- 130 x 108 x 105 mm; 270 g
- Host compatibility
- Windows, Android and Linux operation systems listed
- Sensor
- 640 x 480 CMOS, 30 fps
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
Q200 / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Checkout and service-counter barcode capture
- Parcel, shipping and workstation scanning
- Host systems that need a fixed USB scanner rather than a payment terminal
Browse by device capability
- A desktop scanner designed for rapid paper, screen and QR capture.
- USB-HID and virtual serial modes support common host integration patterns.
- The manufacturer lists Windows, Android and Linux host compatibility.
- Published decode distances are examples for selected codes, not a universal pass-rate guarantee.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Processor | 32-bit RISC processor |
|---|---|
| Host compatibility | Windows, Android and Linux operation systems listed |
| Host interface | USB-HID or USB virtual serial; USB HID-KBW default is listed |
Data capture
| Sensor | 640 x 480 CMOS, 30 fps |
|---|---|
| Barcode scope | 1D/2D paper, PC and smartphone-screen codes; QR, PDF417 and Data Matrix listed |
Power and physical
| Dimensions and weight | 130 x 108 x 105 mm; 270 g |
|---|
Environmental
| Protection | 1.5 m drop resistance listed |
|---|---|
| Environmental | Operating -20 to +60 C; storage -40 to +70 C; 5-95% RH non-condensing |
Other configuration
| Field of view | Roll 360 degrees; skew +/-45 degrees; pitch +/-45 degrees |
|---|---|
| Decode ranges | Manufacturer examples include EAN13 0-110 mm, Code128 0-150 mm, Code39 0-35 mm and payment QR to 250 mm on a 5 inch screen |
| Cable | 1.5 m / 5 ft USB cable |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Keep the Q200 classified as a barcode scanner; the source URL under payment products does not make it a payment terminal.
- Confirm working distance, code size, screen brightness, stand angle and operator motion at the station.
- Choose HID or virtual serial with the host-system owner and define reconnect and queue behavior.
Deployment accessories
- Scope the stand, USB cable, mounting position and cable routing around the counter or workstation.
- Add lighting control or shielding to the pilot when the station has glare, reflective surfaces or vibration.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Test the complete target code set, including damaged, low-contrast, reflective and screen codes.
- 02
Repeat reads at the required distance, angle, lighting and host latency while recording failures.
- 03
Freeze interface mode, stand position, cable, feedback and exception behavior in the station acceptance record.
