UROVO / Barcode scanners
K200: Barcode scanners

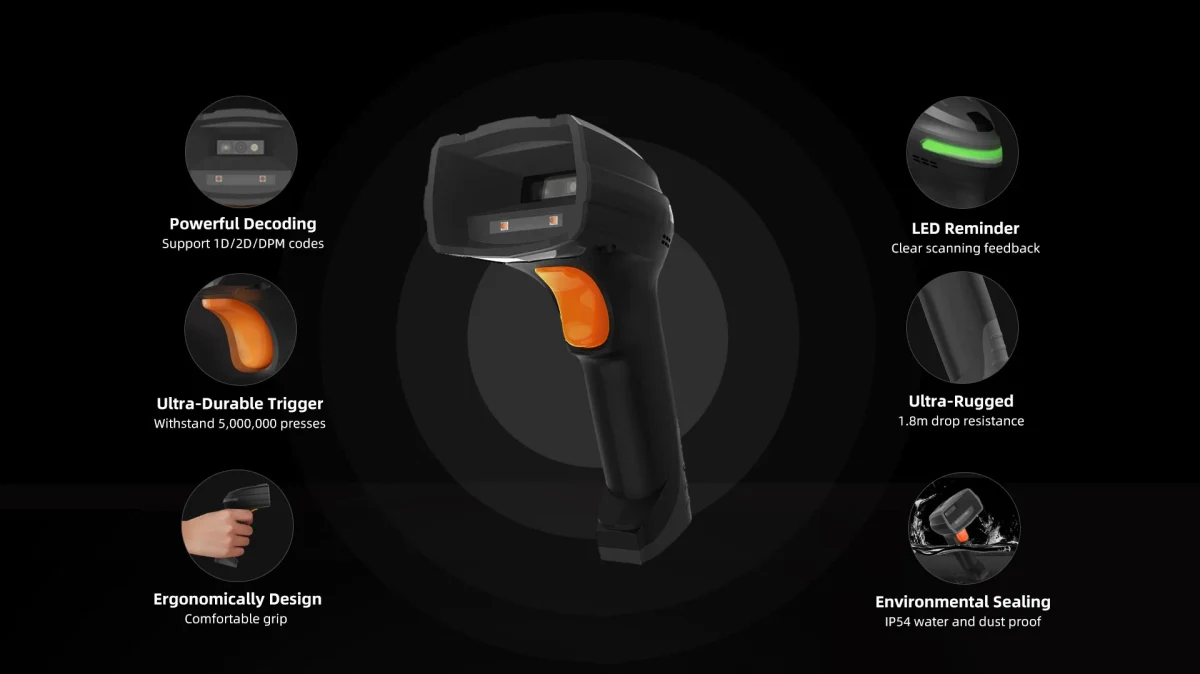

UROVO K200 is a wired industrial barcode scanner for fixed or operator-assisted capture. The official page describes DPM-oriented 1D/2D decoding, variable illumination, USB or RS232 interfaces and IP54 protection; the target code set and lighting must be tested at the station.
Suggested profiles: fixed production, quality, parcel and workstation barcode capture
- Scan angle
- Roll 360 degrees; pitch +/-60 degrees; skew +/-60 degrees
- Protection
- IP54; 1.8 m drop resistance listed
- Dimensions
- 72 x 98 x 186 mm
- Sensor
- 1280 x 1080, 1.3 MP CMOS, 60 frames/s
- Illumination
- Warm-white LED and red LED
- Aimer
- 650 nm laser
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
K200 / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Production and quality stations using marked or printed codes
- Parcel, shipping and workstation barcode capture
- Fixed mounts where a wired host connection is preferred
Browse by device capability
- A wired industrial scanner for production and workstation capture.
- The manufacturer describes a 1.3 MP CMOS sensor, variable red and white illumination and DPM use.
- USB-HID, virtual serial and RS232 options support different host integration patterns.
- IP54 protection and a 1.8 m drop specification are listed by the manufacturer.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Host interfaces | USB-HID, USB virtual serial port and RS232 |
|---|---|
| Operating conditions | -20 to +50 C; 5-95% RH non-condensing; ambient light immunity up to 100,000 lux listed |
Data capture
| Sensor | 1280 x 1080, 1.3 MP CMOS, 60 frames/s |
|---|---|
| Scan angle | Roll 360 degrees; pitch +/-60 degrees; skew +/-60 degrees |
Power and physical
| Dimensions | 72 x 98 x 186 mm |
|---|---|
| Weight | 200 g |
Environmental

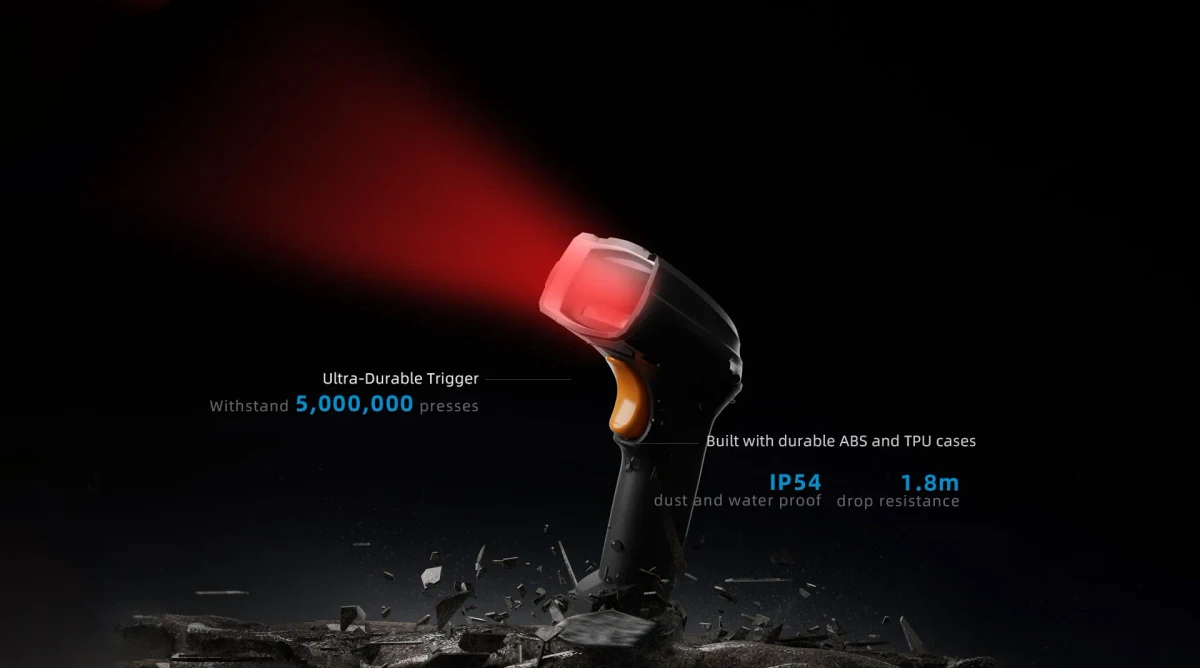

| Protection | IP54; 1.8 m drop resistance listed |
|---|
Other configuration
| Illumination | Warm-white LED and red LED |
|---|---|
| Aimer | 650 nm laser |

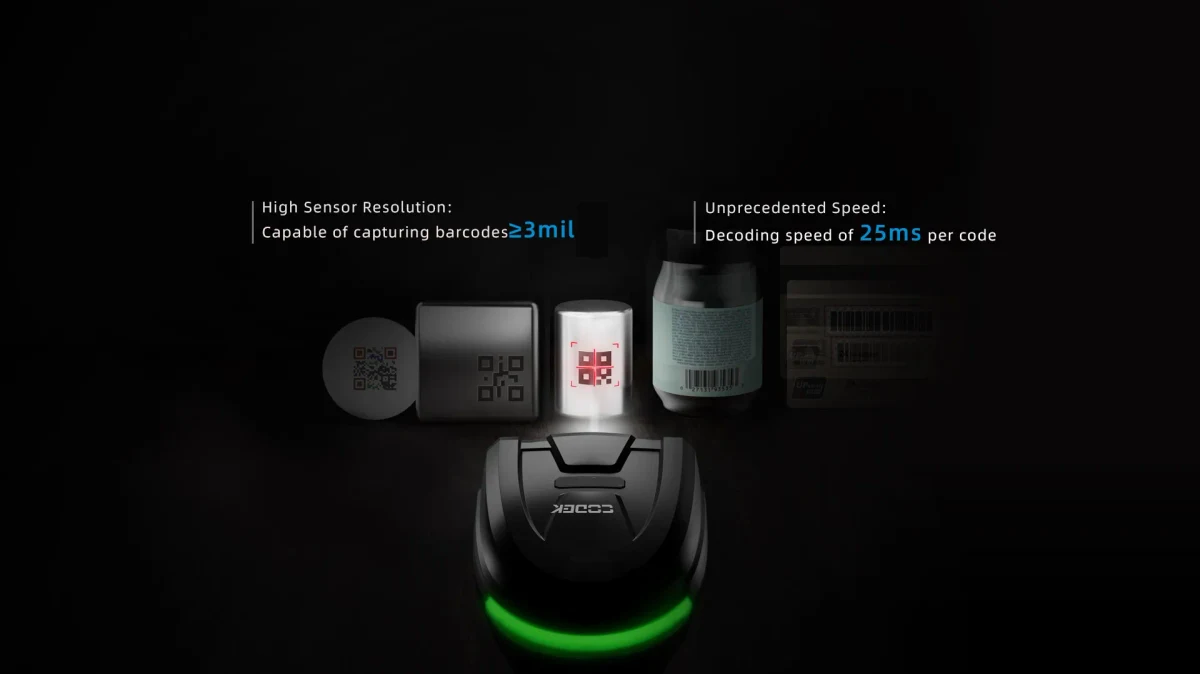

| Resolution | 3 mil or better listed |

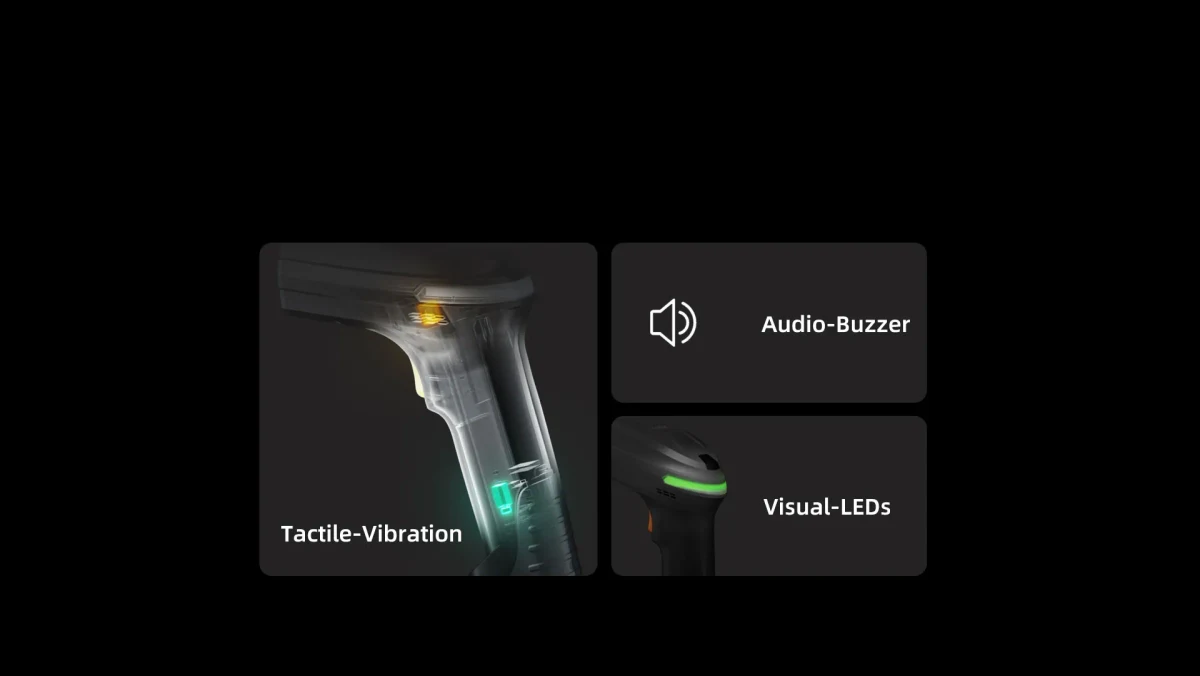

| Feedback | Vibration motor, buzzer and LED indicator |
| Decode scope | 1D and 2D barcode capture, including DPM-oriented use; confirm symbology and code quality |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Fix lens position, working distance, illumination, code placement and trigger timing before evaluating scan performance.
- Select USB or RS232 behavior with the host-system owner and test reconnect, serial framing or keyboard-wedge effects.
- DPM readability depends on marking method, surface, contrast and lighting; do not treat the resolution headline as a guaranteed pass rate.
Deployment accessories
- Use the approved stand, mounting bracket, cable and trigger arrangement for the target workstation.
- Scope additional lighting, shielding and serviceable cable routing when the station has glare, vibration or washdown exposure.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01

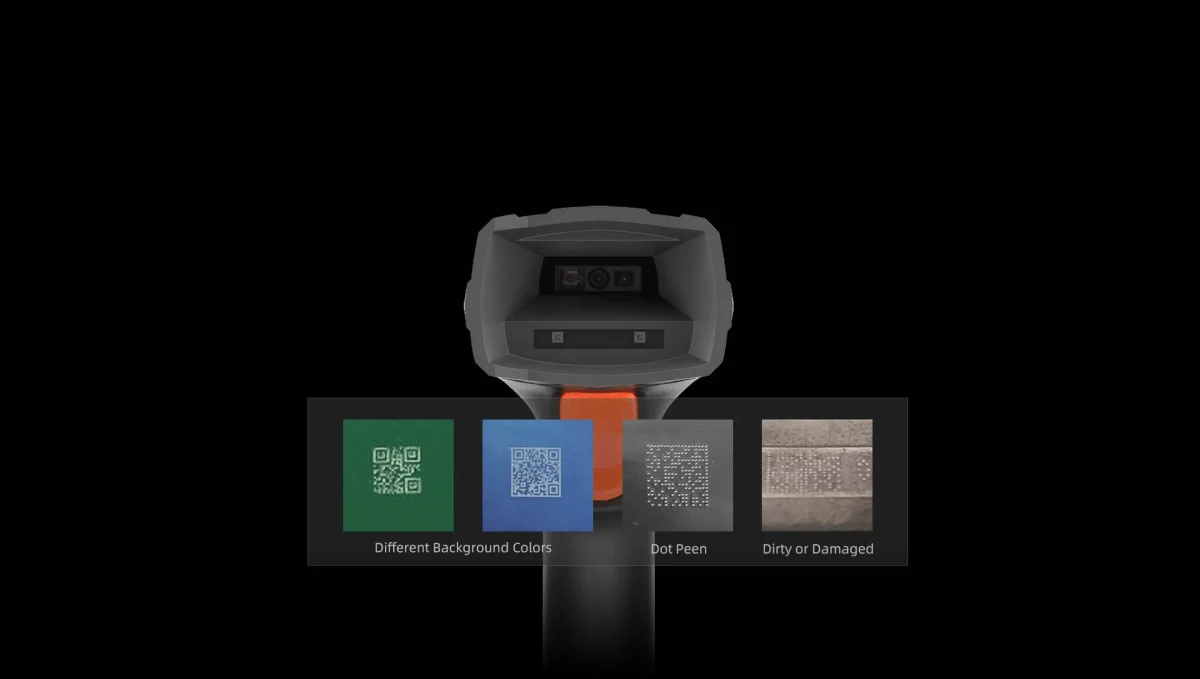

Test the full target code set, including DPM, damaged, reflective, low-contrast and curved samples.
- 02
Repeat reads across the required angle, distance, line speed and lighting range while recording host latency.
- 03
Freeze interface mode, mount, illumination, feedback, cable and exception behavior in the acceptance record.
