FR7000 Series: Fixed RFID readers
UROVO FR7000 Series is an integrated fixed UHF RFID reader for defined portal, shelf, workstation and item-visibility zones. The official page names the Impinj E710 platform, adjustable RF output, RS232 and RJ45 interfaces, and optional 6 dBi or 9 dBi circularly polarized antennas. Published throughput, accuracy and range figures are manufacturer references and require a site pilot.
Suggested profiles: fixed UHF RFID read zones for portals, shelves, workstations and item visibility
- RFID platform
- Impinj E710 chip named by the manufacturer
- Power
- +9 V power supply; optional PoE supply
- Protection
- IP67
- Dimensions and weight
- 130 x 130 x 50 mm / 600 g for 6 dBi; 257 x 257 x 52 mm / 1800 g for 9 dBi
- Performance reference
- Up to 1300+ tags per second and 99.7% accuracy are manufacturer statements, not RuggedLayer test results
- Frequency
- 860-960 MHz; adjustable to meet different country or regional requirements
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
FR7000 Series / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles

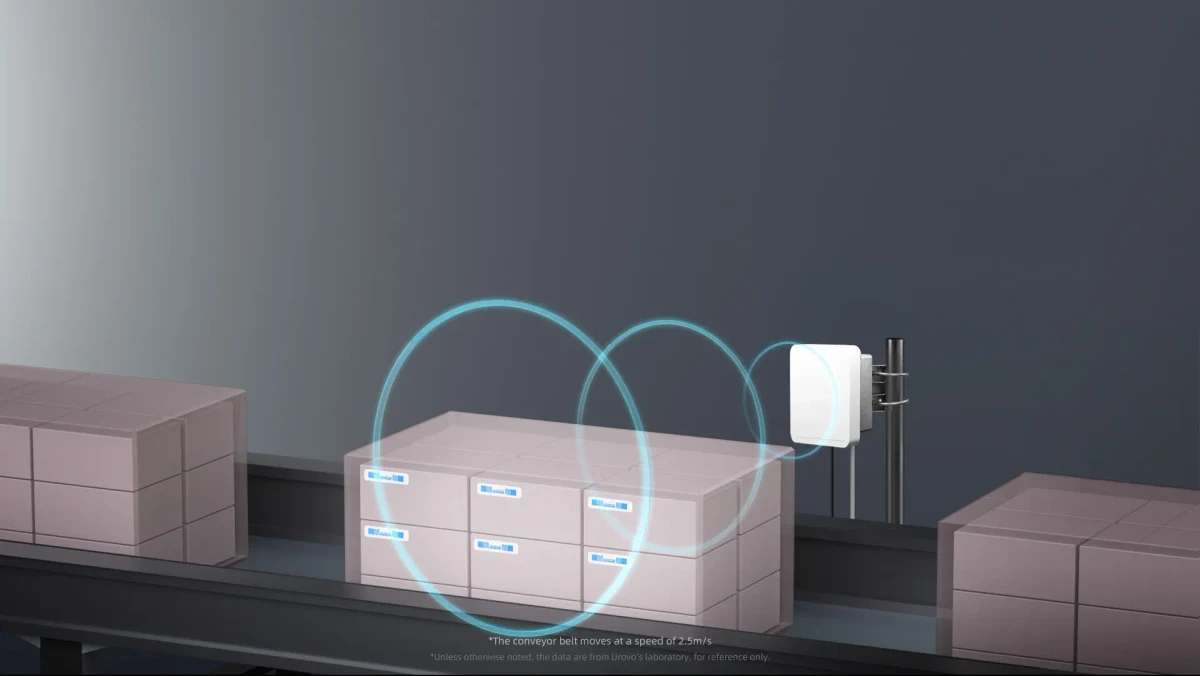

- Dock-door, portal and conveyor read zones
- Shelf, cabinet and workstation item visibility
- Retail, warehouse and asset installations with defined RF geometry
Browse by device capability
- An integrated fixed reader for a controlled UHF RFID zone rather than a general-purpose handheld task.
- The manufacturer names the Impinj E710 platform and adjustable 0-30 dBm output.

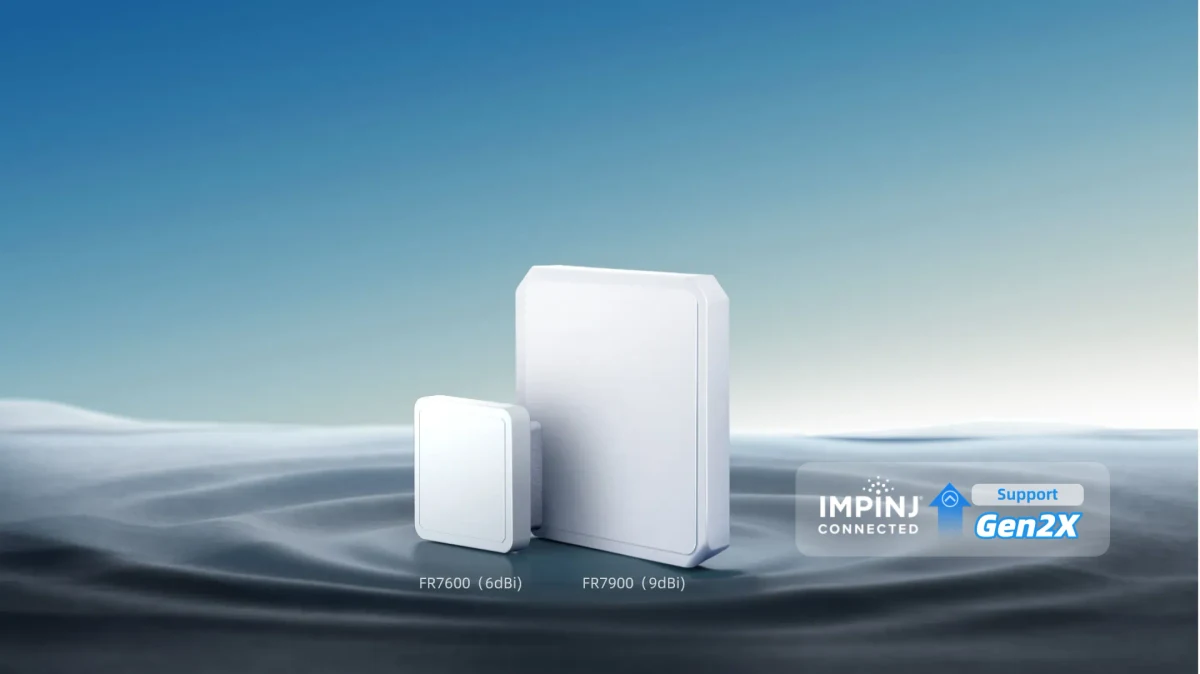

- 6 dBi and 9 dBi antenna options provide different physical and read-zone profiles.
- RS232, RJ45 and optional industrial interfaces support station integration, subject to project testing.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Data capture
| RFID platform | Impinj E710 chip named by the manufacturer |
|---|---|

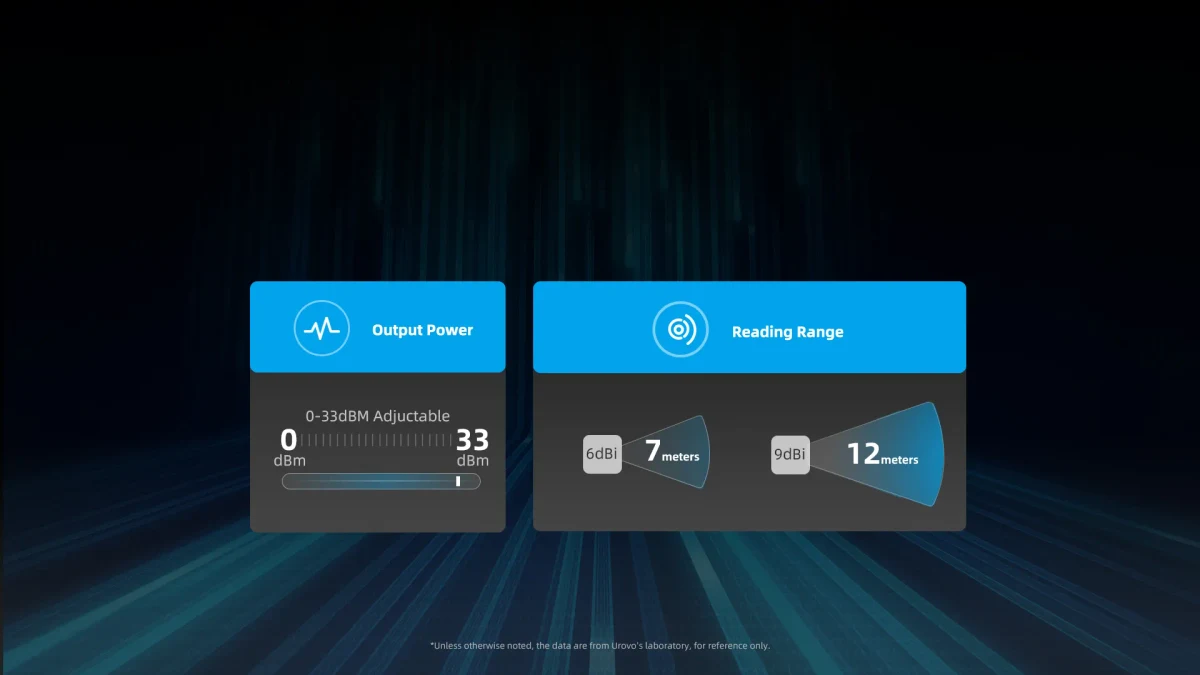

| Reading range reference | Over 7 m with 6 dBi antenna or 12 m with 9 dBi antenna; manufacturer reference |
Power and physical

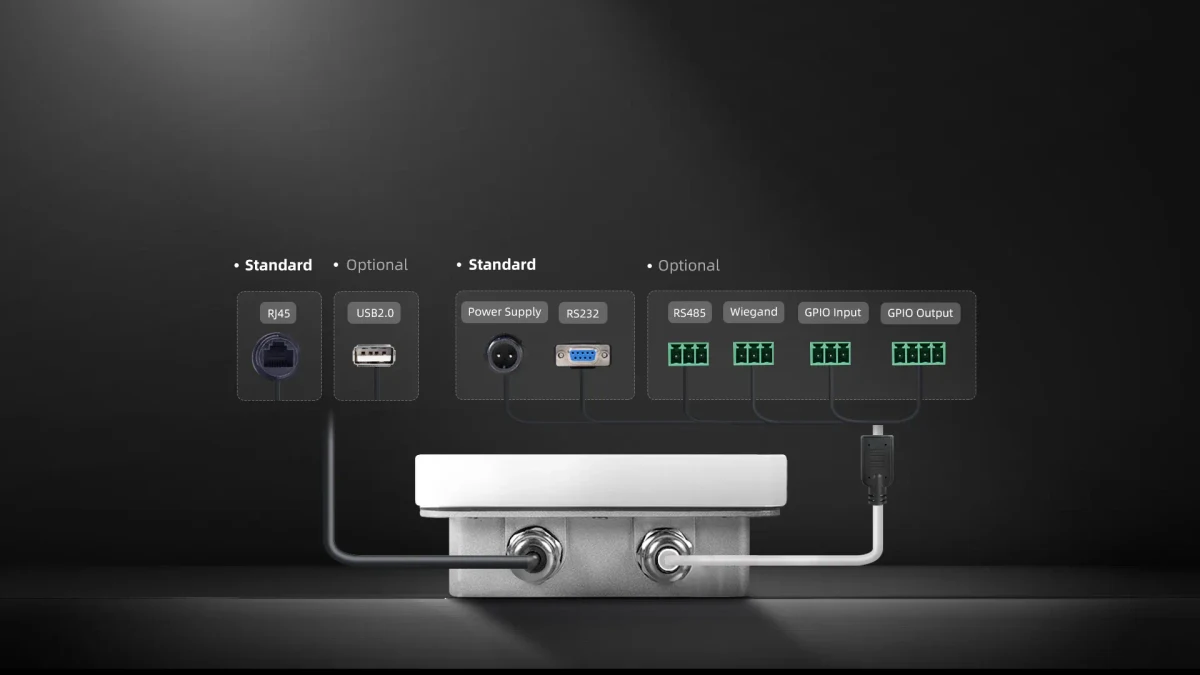

| Interfaces | RS232 and RJ45; optional RS485, Wiegand, GPIO and USB 2.0 |
|---|---|
| Power | +9 V power supply; optional PoE supply |
| Dimensions and weight | 130 x 130 x 50 mm / 600 g for 6 dBi; 257 x 257 x 52 mm / 1800 g for 9 dBi |
Environmental

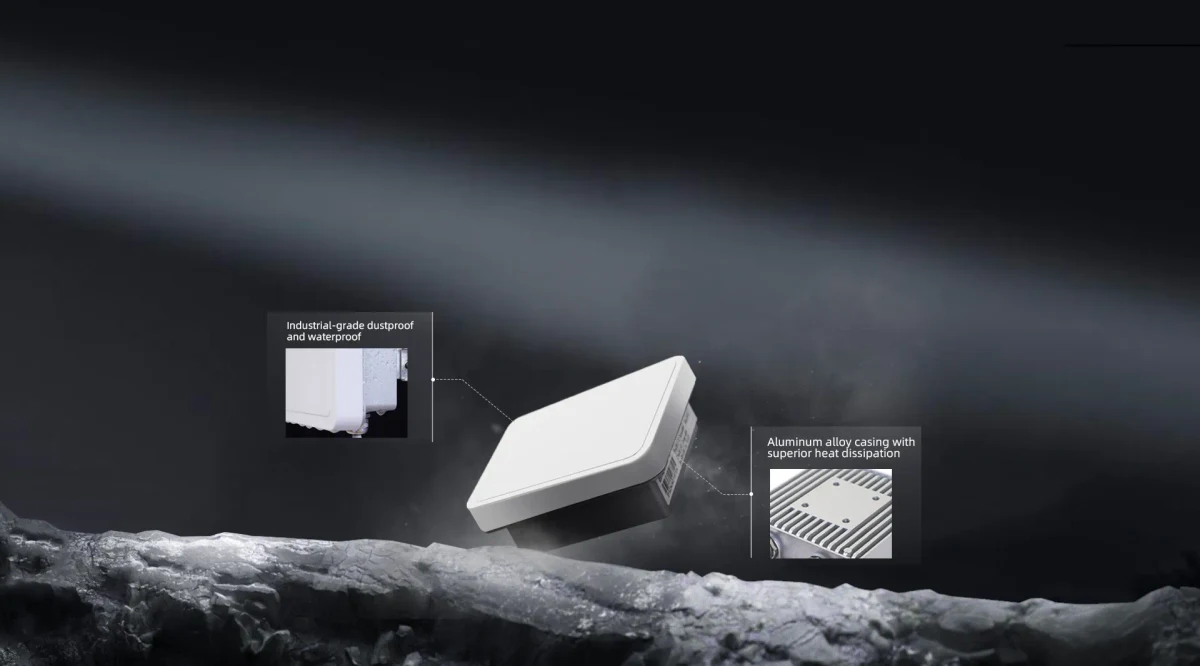

| Protection | IP67 |
|---|---|
| Environmental | Operating -10 to +55 C; storage -20 to +75 C; 5-95% RH non-condensing; ESD +/-15 kV air and +/-8 kV contact listed |
Other configuration
| Performance reference | Up to 1300+ tags per second and 99.7% accuracy are manufacturer statements, not RuggedLayer test results |
|---|---|
| Frequency | 860-960 MHz; adjustable to meet different country or regional requirements |
| Protocol | ISO 18000-6C (EPC C1G2) |
| RF output | 0-30 dBm, adjustable |
| Antenna | Optional circularly polarized 6 dBi or 9 dBi antenna |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers

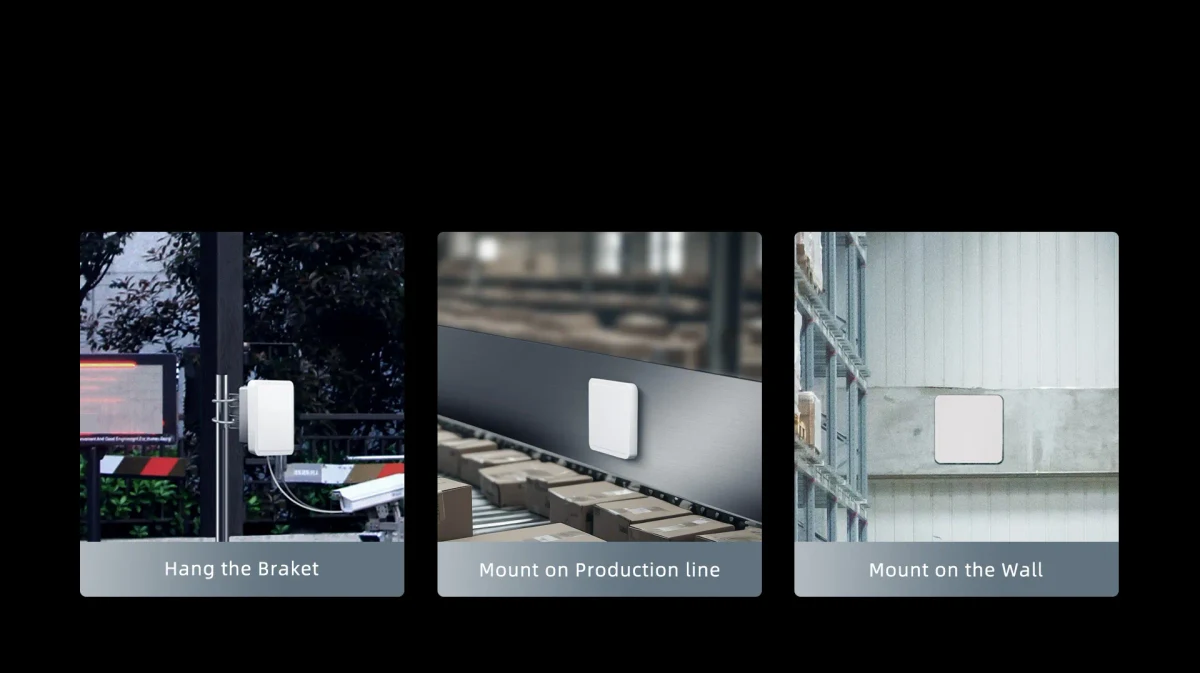

- Select the antenna configuration, mounting position, read boundary, shielding and cable route before evaluating coverage.
- Confirm the regional UHF frequency plan, allowed output, network segmentation, power method and installation requirements.
- Treat 1300+ tags per second, 99.7% accuracy and 7/12 m range as manufacturer references; label material, orientation, density and interference can change results.
Deployment accessories
- Scope the selected antenna, RF cable, mounting brackets, power supply or PoE switch, network cable and protective installation hardware.
- Prepare representative tags, fixtures, shielding and adjacent equipment for commissioning and read-zone tuning.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Test the target tag IC, material, orientation, density and movement speed at the required read boundary.
- 02
Record missed, duplicate, stray and cross-zone reads over repeated sessions with the target application and interface.
- 03
Freeze regional RF settings, antenna, output, network, power, mounting and exception handling in the acceptance record.
