UROVO / Fixed RFID readers
FR2000: Fixed RFID readers
UROVO FR2000 is a compact fixed UHF RFID reader for controlled desktop, checkout and workstation read zones. The official page lists a built-in antenna, 0-50 cm reading range, USB-C power and optional PoE or Ethernet; the tag and read-zone design still require a pilot.
Suggested profiles: controlled desktop, checkout, pharmacy and workstation RFID read zones
- Reading range
- Built-in antenna; 0-50 cm listed
- Power
- USB Type-C powered; optional PoE supply
- Protection
- IP54
- Communication
- USB 2.0 over Type-C; optional Ethernet
- Dimensions
- 325 x 325 x 20 mm
- Weight
- 1850 g
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
FR2000 / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Desktop checkout and item-identification stations
- Pharmacy, library or jewelry read zones with controlled placement
- Workstations that need a fixed RFID event without a handheld sled
Browse by device capability
- A compact fixed reader for a defined, short-range RFID work zone.
- The manufacturer lists a built-in antenna and 0-50 cm reading range.
- USB-C power and optional PoE or Ethernet support flexible workstation installation.
- Adjustable RF output and ISO 18000-6C support require regional and tag-level validation.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Data capture
| Reading range | Built-in antenna; 0-50 cm listed |
|---|
Connectivity
| Communication | USB 2.0 over Type-C; optional Ethernet |
|---|
Power and physical
| Dimensions | 325 x 325 x 20 mm |
|---|---|
| Weight | 1850 g |
| Power | USB Type-C powered; optional PoE supply |
Environmental
| Protection | IP54 |
|---|---|
| Environmental | Operating -20 to +50 C; storage -40 to +70 C; humidity 5-95% RH non-condensing |
Other configuration
| Frequency | 840-960 MHz; regional configuration requires confirmation |
|---|---|
| Protocol | ISO 18000-6C (EPC C1G2) |
| RF output | 0-30 dBm, adjustable |

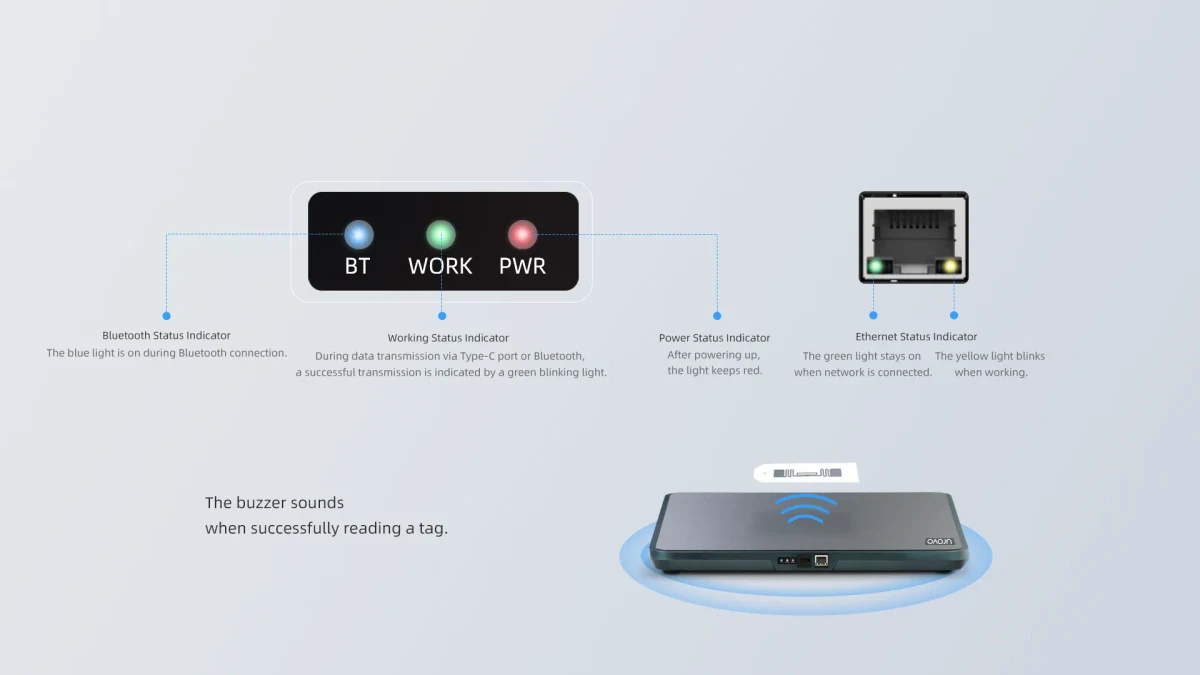

| Feedback | Buzzer sounds when tags are read; indicator LED status feedback |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Define the physical read boundary, tag placement, shielding and operator action before selecting the power and network option.
- Confirm the regional frequency and output settings with the installation and compliance owner.
- Treat the published range and accuracy statements as manufacturer references; they do not establish performance with every tag or material.
Deployment accessories
- Plan the USB-C power supply or PoE switch, Ethernet cabling, mounting surface and cable routing for the station.
- Use representative tags, fixtures and shielding materials in the pilot so the read zone can be tuned before rollout.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Test the target tag IC, material, orientation and density at the intended 0-50 cm read boundary.
- 02
Record missed, duplicate and stray reads over repeated sessions with the target application and host interface.
- 03
Freeze RF output, regional frequency, network, power, mounting and exception handling in the acceptance record.
