UROVO / Enterprise mobile computers
DT40 Series: Enterprise mobile computers
UROVO DT40, a smart handheld PDA mobile barcode scanner with an Android operating system and HD dual cameras, can quickly read 1D/2D barcodes.
Best fit: warehouse, retail, field service and delivery workflows
- CPU
- Qualcomm 1.8GHz Octa core 64bit processor or Octacore 2.0GHz
- Memory
- 2GB RAM / 16GB ROM · 3GB RAM / 32GB ROM (optional) · Micro-SD card, up to 256GB
- Display
- 4" WVGA (480 x 800 pixel) TFT-LCD
- Scanning
- 1D Laser or 1D/2D imager
- Power
- Rechargeable 3.8V/4500 mAh · Li-Ion battery
- Protection
- IP67 · Multiple 1.5m drop to concrete · at room temperature.
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where DT40 Series fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for

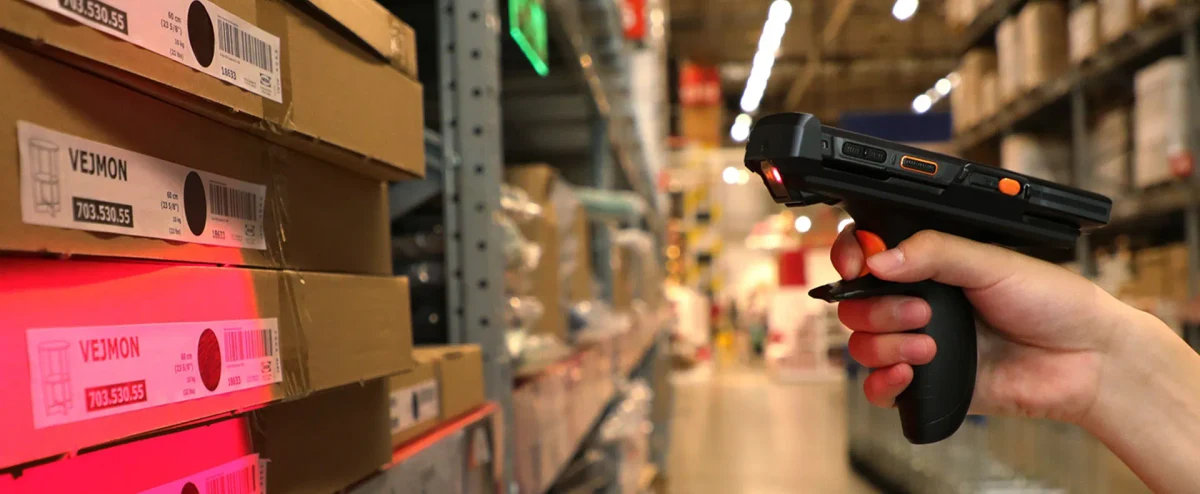

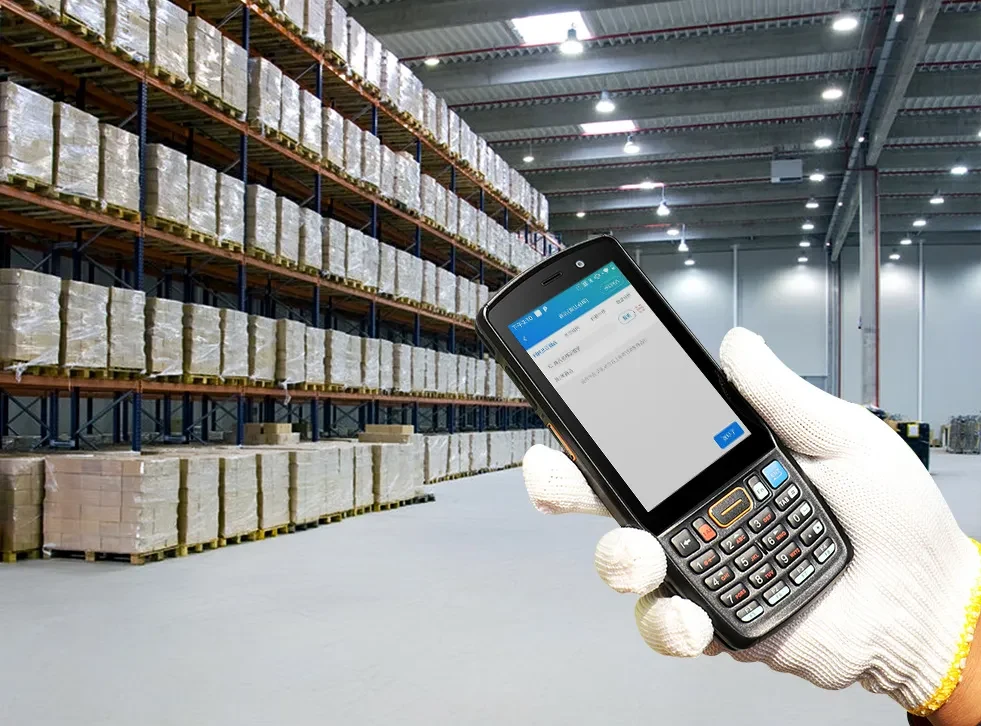

- Warehouse receiving and inventory

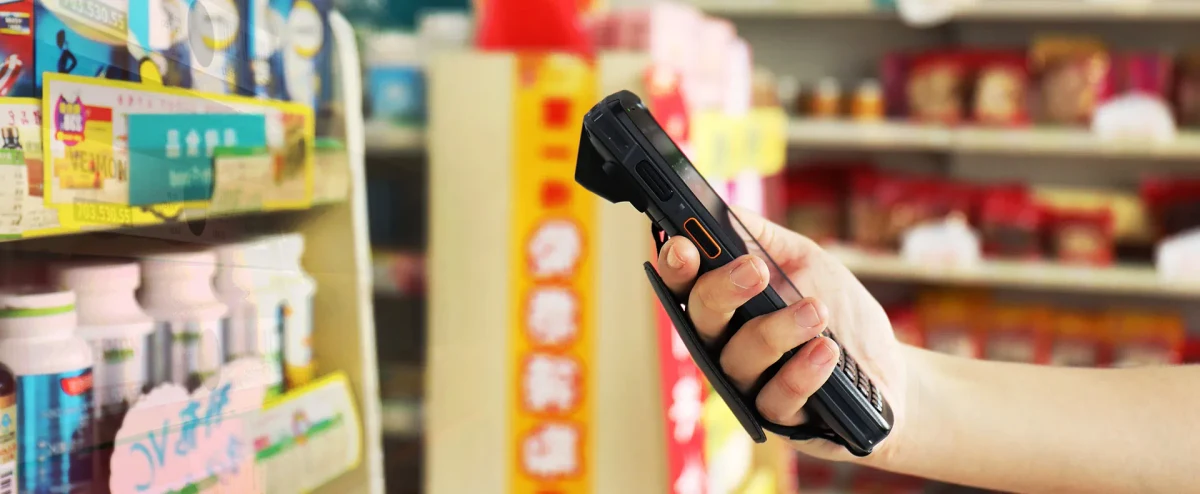

- Retail operations and assisted selling
- Field service and proof of delivery
Key capabilities
- A handheld platform for application-led data capture; exact scan, network and OS options require configuration review.
- Portfolio fit: warehouse, retail, field service and delivery workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| CPU | Qualcomm 1.8GHz Octa core 64bit processor or Octacore 2.0GHz |
|---|---|
| OS | Android |
| Memory | 2GB RAM / 16GB ROM · 3GB RAM / 32GB ROM (optional) · Micro-SD card, up to 256GB |
| Display | 4" WVGA (480 x 800 pixel) TFT-LCD |
| Touchpanel | Ultra sensitive capacitive touch panel, · works with gloves and wet fingers; · Corning Gorilla Glass; Multi-touch |
Data capture
| Scanning | 1D Laser or 1D/2D imager |
|---|---|

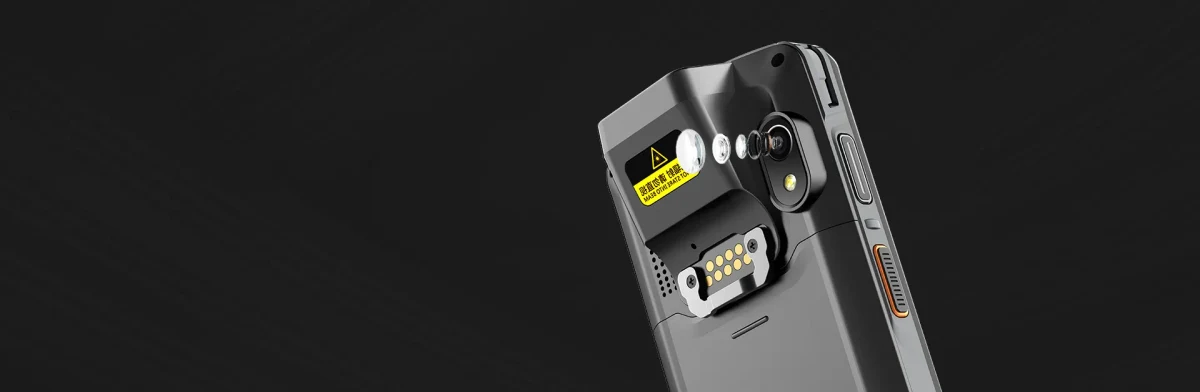

| Camera | Front-2MP · Rear-13MP auto-focus camera · with flash LED |

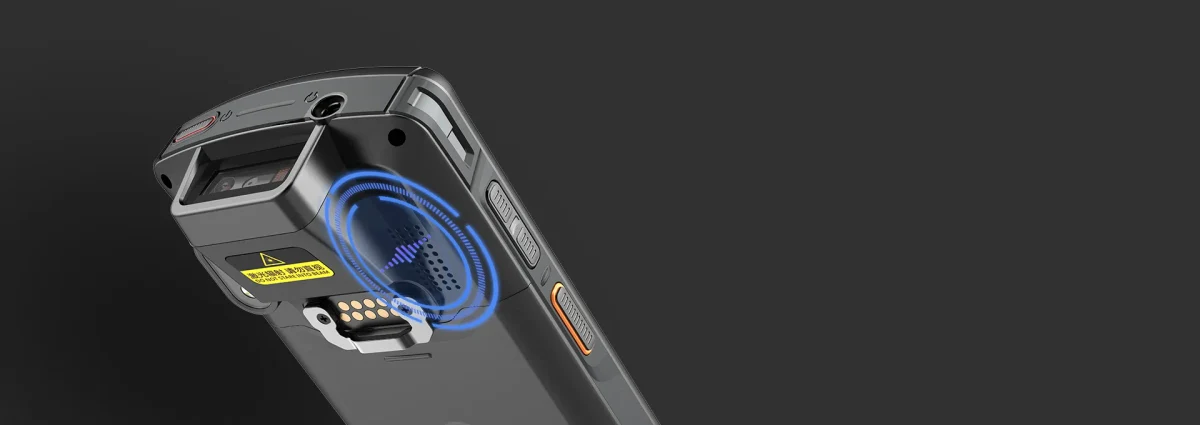

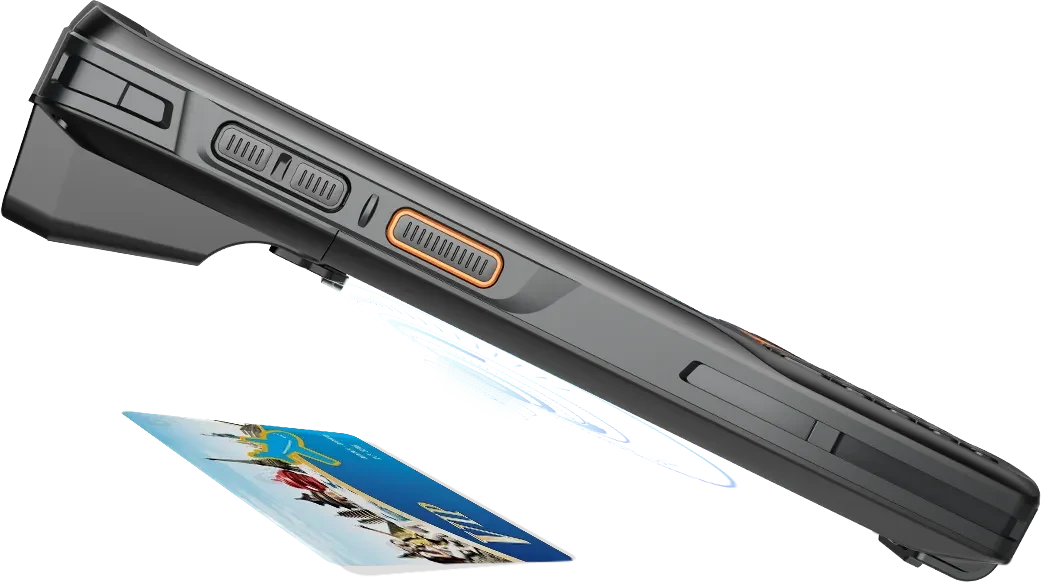

| NFC | 13.56MHz · ISO15693 cards, · ISO14443 type A&B, · Mifare, Felica. etc |
Connectivity
| Bluetooth | BT |
|---|---|
| Wi-Fi | 2.4G/5G · 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w · IPv4，IPv6 |
| GPS | GPS, Beidou, Glonass, support A-GPS |
Power and physical
| Dimensions | 164.5mm× 68.6mm×17.5mm · 6.48in× 2.7in× 0.69in |
|---|---|
| Weight | 240g/8.47oz (include battery) |

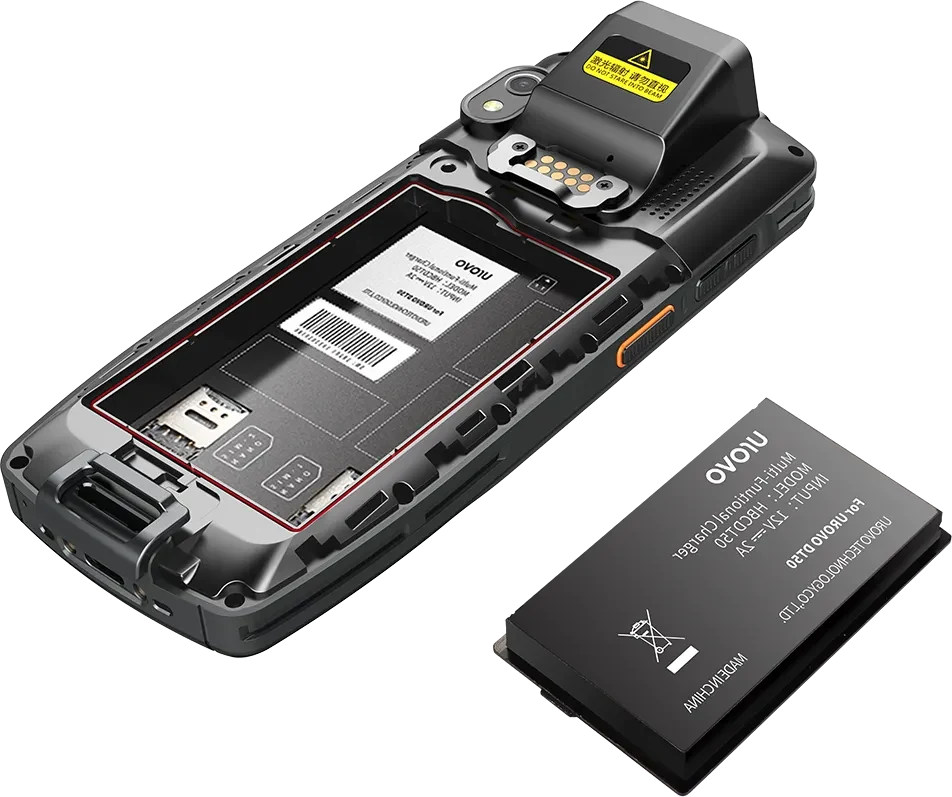

| Power | Rechargeable 3.8V/4500 mAh · Li-Ion battery |
Environmental
| Protection | IP67 · Multiple 1.5m drop to concrete · at room temperature. |
|---|---|
| Environmental | Operating Temperature：- 20°C~60°C · (-4°F~140°F) · Storage Temperature：- 40°C~70°C · (-40°F~158°F ) · Humidity：5%RH ~ 95%RH · (non condensing) |
Other configuration
| Audio | Dual-microphone support with noise · cancellation, high quality speaker |
|---|---|
| Keyboard | 3 Virtual keys+21 Physical keyboard+5 side keys |
| WWAN | WWAN · 2×Nano-SIM slots · Dual-SIM,Dual-Standby · 4G, 3G, 2G |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Scan Trigger
- Single Cradle
- Multi-Functional Cradle
- 4-Slot Battery Charger
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make DT40 Series part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
