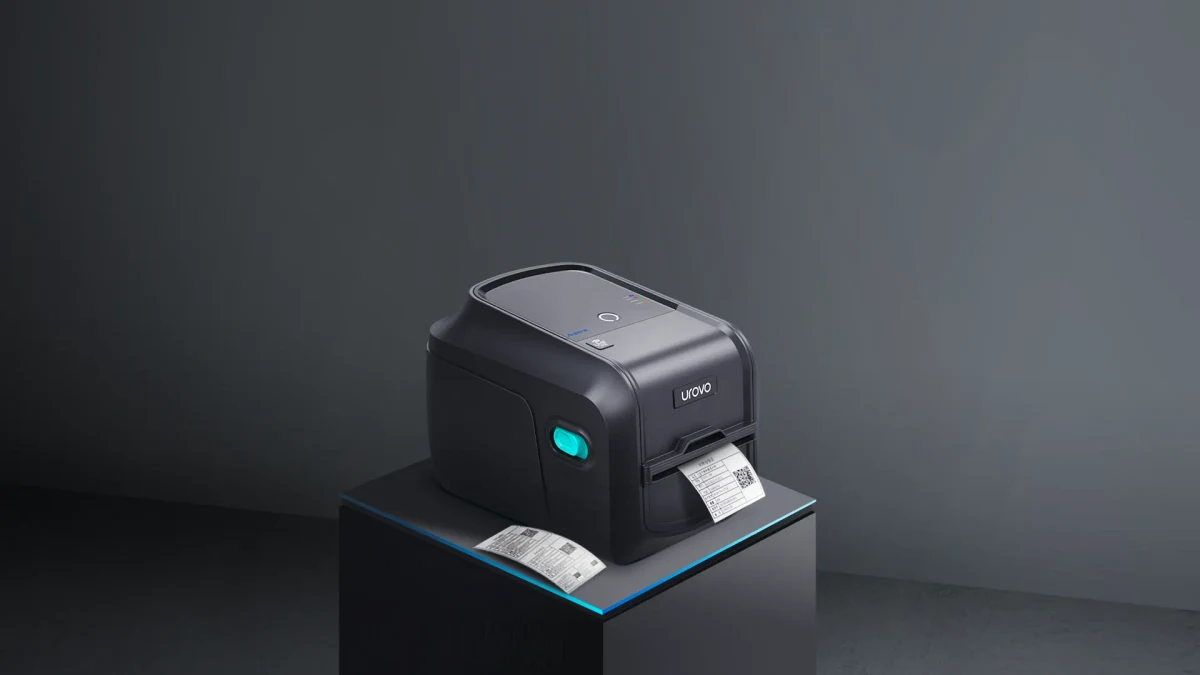

D81R Series: Label and receipt printers
UROVO D81R Series is an RFID desktop printer-encoder for producing and encoding item, jewelry, anti-metal and larger logistics labels. The official page lists 15 mm minimum on-pitch printing, direct thermal or thermal transfer methods, TSPL/ZPL/ZPL II emulation and D812R/D813R resolution options. Media and encoding performance must be validated on the intended label stock.
Suggested profiles: desktop RFID label printing and encoding for logistics, manufacturing, healthcare and item-level identification
- Processor
- 500 MHz, 32-bit Cortex-M7
- Memory
- 8 MB SDRAM and 16 MB flash
- RFID
- EPC Class 1 Gen 2 / ISO 18000-6C; TID, EPC and TID+EPC reading; password lock/unlock and job monitoring listed
- Communication
- USB 2.0 at 480 Mbps; Bluetooth; optional dual-band 2.4/5 GHz Wi-Fi
- Dimensions and weight
- 280 x 190 x 198.3 mm; 2.7 kg net weight
- Printer type

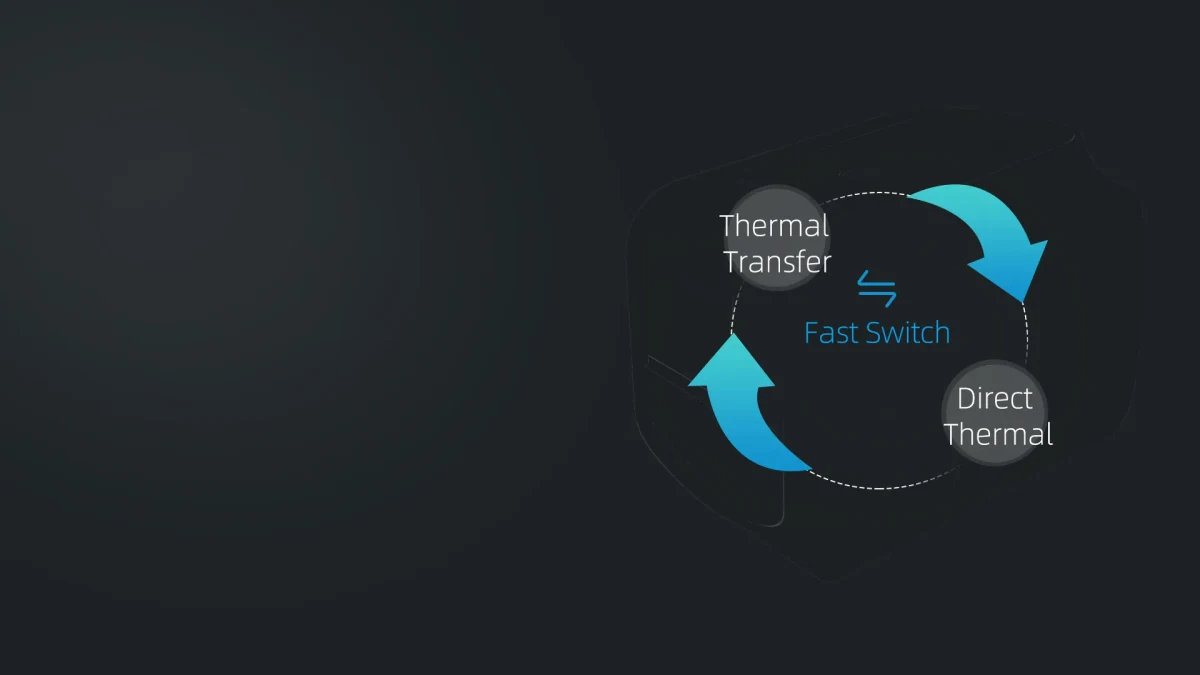

- RFID desktop printer-encoder; direct thermal or thermal transfer
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
D81R Series / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Logistics and warehouse RFID labeling
- Manufacturing, healthcare and asset-identification labels
- Jewelry, anti-metal and item-level label preparation
Browse by device capability
- A desktop print-and-encode platform for RFID labels and item-level identification.
- The manufacturer lists minimum 15 mm on-pitch RFID label printing and support for thick on-metal labels under 1.3 mm.
- D812R and D813R provide different resolution and maximum-width configurations.
- TSPL, ZPL and ZPL II emulation supports common label-host integration patterns, subject to template testing.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Processor | 500 MHz, 32-bit Cortex-M7 |
|---|---|
| Memory | 8 MB SDRAM and 16 MB flash |
Data capture
| RFID | EPC Class 1 Gen 2 / ISO 18000-6C; TID, EPC and TID+EPC reading; password lock/unlock and job monitoring listed |
|---|
Connectivity
| Communication | USB 2.0 at 480 Mbps; Bluetooth; optional dual-band 2.4/5 GHz Wi-Fi |
|---|
Power and physical
| Dimensions and weight | 280 x 190 x 198.3 mm; 2.7 kg net weight |
|---|
Environmental
| Environmental | Operating +5 to +40 C, 25-85% RH non-condensing; storage -40 to +60 C, 10-90% RH non-condensing |
|---|
Other configuration
| Printer type | RFID desktop printer-encoder; direct thermal or thermal transfer |
|---|---|
| Resolution | 203 dpi on D812R; 300 dpi on D813R |
| Maximum print width | 104 mm on D812R; 108.4 mm on D813R |
| Print and encode speed | Up to 4 inch/s; manufacturer maximum reference |
| Maximum print length | 1000 mm listed |
| Emulation | TSPL, ZPL and ZPL II |

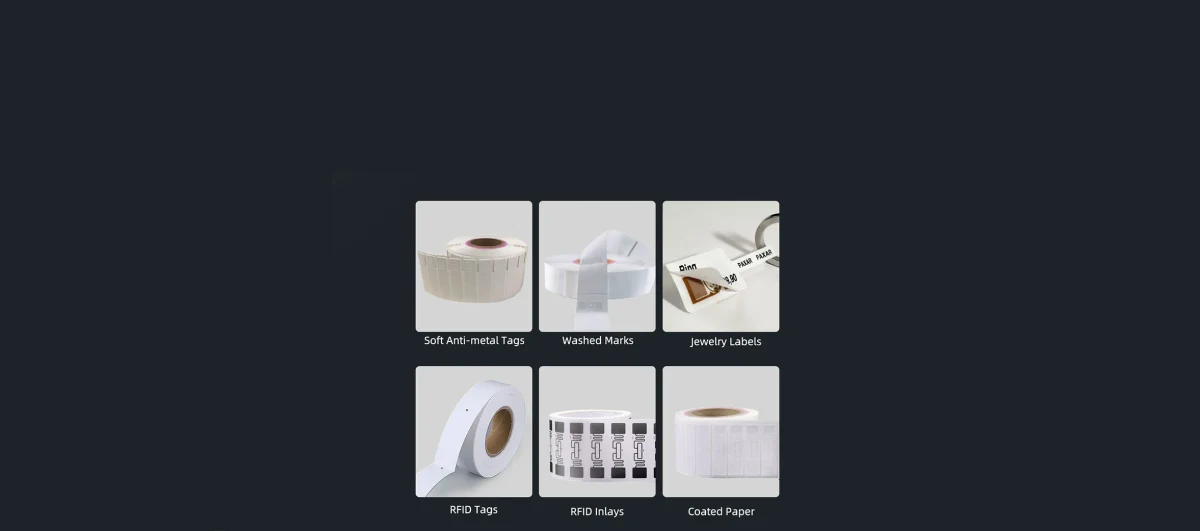

| Media | RFID tags, flexible anti-metal labels, jewelry adhesive labels and coated paper labels |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Choose D812R or D813R from the required print width, resolution, inlay pitch and label artwork rather than treating the series as one fixed SKU.
- Confirm label inlay, chip, material, adhesive, on-metal construction, ribbon and thermal method with representative media.
- Plan calibration, RFID encoding error handling, password policy, host emulation, network option and operator replenishment before rollout.
Deployment accessories
- Scope approved RFID media, thermal-transfer ribbon where required, USB or network cabling, power and the workstation surface.
- Keep the accepted label artwork, printer settings, inlay profile and encoding rules versioned with the deployment record.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Print and encode representative labels across the required sizes, pitch, material, inlay and artwork density.
- 02
Measure encoding success, verification, retries, rejected labels, print quality and host recovery over repeated batches.
- 03
Freeze D812R/D813R selection, resolution, width, emulation, media profile, RF settings and error handling in acceptance.
