SEUIC (Dongji) / Visual readers

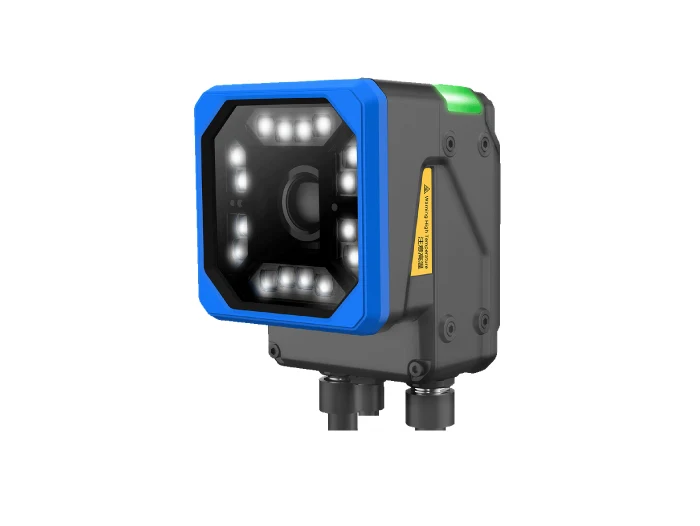

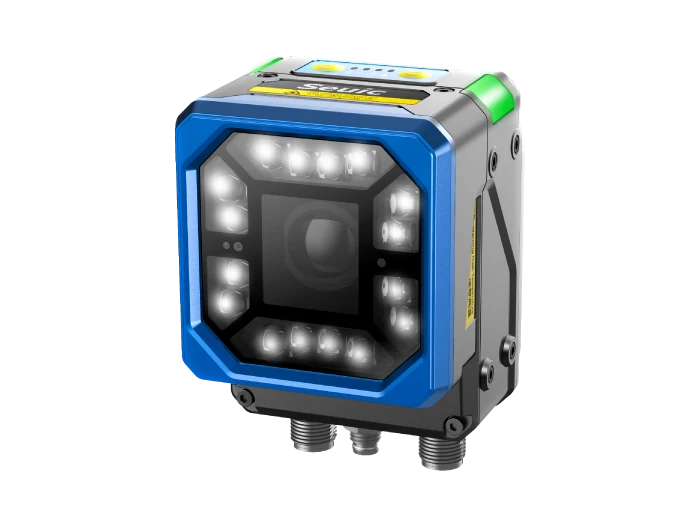

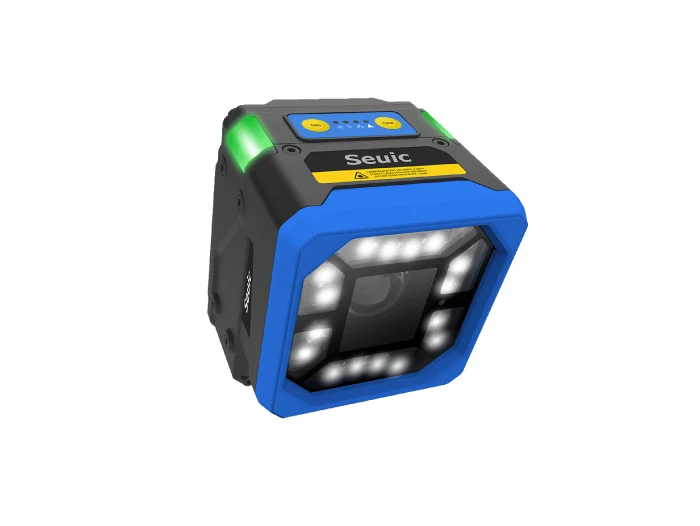

X5Pro: Visual readers
X5Pro is listed in the visual readers portfolio for automated visual code capture. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: machine-vision-assisted code reading and inspection
- Shell protection level
- IP67
- Serial communication transmission speed
- 115200/57600/38400/19200/9600 bps
- weight
- 458g
- sensor
- CMOS image sensor with global shutter
- Image pixels
- 5 million, 2448x2048
- lighting source
- Standard lighting (16*LED)/high power lighting (32*LED) · Color: 6500K white light, optional red light or blue light
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where X5Pro fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Production traceability
- Packaging and parcel verification
- Automated workstations
Key capabilities
- A visual reader entry for an automated capture station; lighting, field of view, code quality and trigger timing need a test plan.
- Portfolio fit: machine-vision-assisted code reading and inspection.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Storage temperature | -20°C ~70°C |
|---|---|
| Storage environment humidity | 5% to 95% RH without condensation |
Data capture
| sensor | CMOS image sensor with global shutter |
|---|
Connectivity
| Serial communication transmission speed | 115200/57600/38400/19200/9600 bps |
|---|---|
| Protocols supported by serial communication | RS232 |
Power and physical
| Support code system | 1D: Code128, GS1128, Code39, Code93, codabar, Cross 25 code, EAN/UPC · 2D: QR, DataMatrix (ECC200), PDF417, MicroPDF417 |
|---|---|
| Control the number of input connection ports | 3 |
| Control the number of output connection ports | 3 |
| Protocols supported by Ethernet | TCP/UDP TCPClient, TCPServer, FTP, Profinet, MELSEC, Ethernet/IP, ModBusTcp(poll/slave), Fins, POE IEEE 802.at 802.3af protocol |
| weight | 458g |
Environmental
| Shell protection level | IP67 |
|---|---|
| working temperature | 0°~50°C |
| relative humidity | 5% to 95% RH without condensation |
| working environment | No dust or corrosive gases |
Other configuration
| Image pixels | 5 million, 2448x2048 |
|---|---|
| lighting source | Standard lighting (16*LED)/high power lighting (32*LED) · Color: 6500K white light, optional red light or blue light |
| sight | Laser single point positioning sight ClassII |
| Detection distance | X5Pro (standard type): adjustable from 60mm to 2000mm · X5ProW (wide field of view type): adjustable from 25mm to 2000mm |
| resolution | X5Pro (standard type): 1D 0.7mil, 2D 2mil · X5ProW (wide field of view type): 1D 0.5mil, 2D 1.5mil |
| Control input input type | Bidirectional voltage input |
| Control input maximum rating | 30V |
| Control input minimum ON voltage | ＜4V |
| Control input maximum OFF current | 0.001A |
| Control output output type | 3-way optocoupler output, supports common cathode and common anode |
| Control output maximum rating | 30V |
| Control output maximum load current | 1 output: 50mA or less Total 3 outputs: 100mA or less |
| Leakage current when control output is OFF | 0.1mA or less |
| Residual voltage when control output is ON | 1V or less |
| ambient brightness | 0~10000 lux |
| Supply voltage | 20~30V DC |
| Current consumption | 0.5~4A |
| size | 100mm x 67mm x 65.7mm |
| Warm reminder | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm lens, lighting, mounting, trigger, I/O, network and image-retention requirements.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
