SEUIC (Dongji) / Visual readers

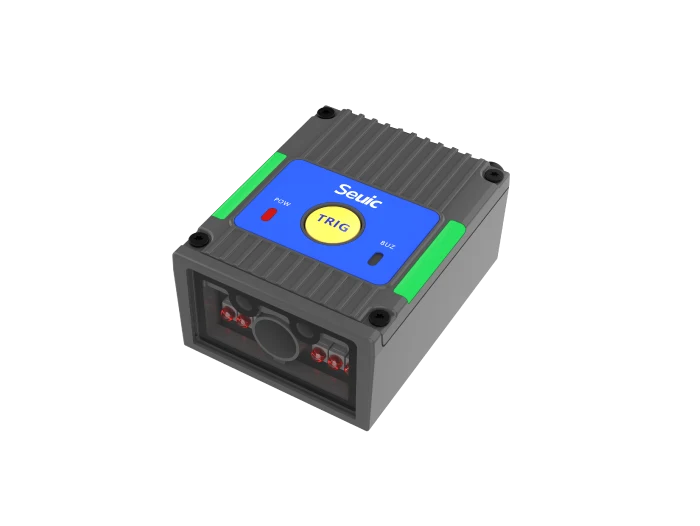

X3G: Visual readers
X3G is listed in the visual readers portfolio for automated visual code capture. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: machine-vision-assisted code reading and inspection
- Readable barcode types
- 1D codes: all standard 1D barcodes · 2D codes: DataMatrix (ECC200), QR code, Micro QR, PDF417, MicroPDF417, Maxicode, Aztec, etc.
- Power supply/power consumption
- DC 5V±5%, 300 mA ±5% (typ.), 450 mA ±5% (max.)
- Protection level
- IP54
- Communication interface
- USB，RS-232
- weight
- About 34g (excluding cable)
- image sensor
- CMOS sensor with global shutter 1280x800
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where X3G fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Production traceability
- Packaging and parcel verification
- Automated workstations
Key capabilities
- A visual reader entry for an automated capture station; lighting, field of view, code quality and trigger timing need a test plan.
- Portfolio fit: machine-vision-assisted code reading and inspection.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Frame rate | Up to 60 frames/second |
|---|---|
| storage temperature | -20℃ to 70℃ |
Data capture
| image sensor | CMOS sensor with global shutter 1280x800 |
|---|---|
| Readable barcode types | 1D codes: all standard 1D barcodes · 2D codes: DataMatrix (ECC200), QR code, Micro QR, PDF417, MicroPDF417, Maxicode, Aztec, etc. |
| Reading direction | Supports omnidirectional reading of barcodes in any direction |
| Recognition accuracy | One-dimensional code: 3.3mil, two-dimensional code: 5.0mil |
| recognition distance | 3mil Code39: 40mm ~ 80mm (HD high-density version), 10mil Code39: 50mm ~ 150mm (HD high-density version) 50mm ~ 200mm (SR standard version) · 10mil Datamatrix: 30mm ~ 130mm (HD high-density version) 35mm ~ 250mm (SR standard version), ENA-13 100%: 30mm ~ 165mm (HD high-density version) 30mm~300mm (SR standard version) |
| Reading mode | Key mode, automatic sensing, continuous mode, serial port command |
Connectivity
| Communication interface | USB，RS-232 |
|---|
Power and physical
| weight | About 34g (excluding cable) |
|---|---|
| Power supply/power consumption | DC 5V±5%, 300 mA ±5% (typ.), 450 mA ±5% (max.) |
Environmental
| working temperature | 0℃ to 50℃ |
|---|---|
| humidity | 5% to 95% RH without condensation |
| Protection level | IP54 |
Other configuration
| lighting source | High brightness red LED |
|---|---|
| sight | red linear sight |
| Field of view | 46° horizontally (H), 29° vertically (V) |
| Print contrast | ≥30% |
| size | 40(H)×50.3(W)×23(T) mm (excluding data cable) |
| Shell material | Aluminum alloy +ABS engineering plastic |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm lens, lighting, mounting, trigger, I/O, network and image-retention requirements.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make X3G part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
