SEV450: Vision cameras

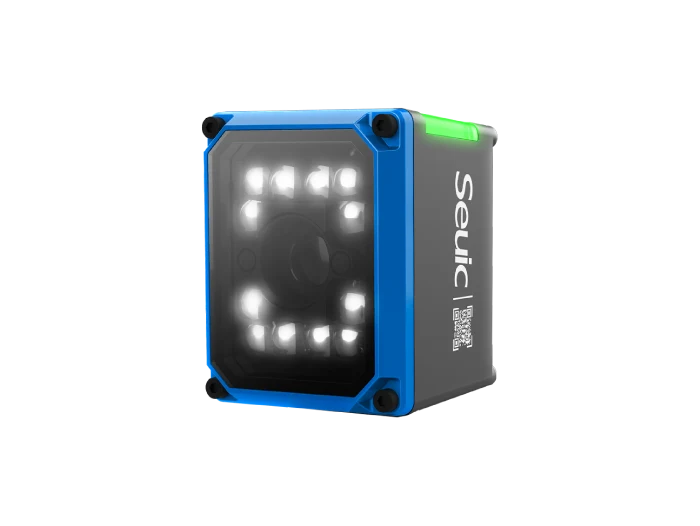

SEUIC (Dongji) SEV450 is an industrial vision sensor for measurement, positioning, code identification and guided inspection. The official page lists a 2 MP global-shutter sensor, standard and wide-view focus ranges, configurable lighting, OCR and IP67 protection.
Suggested profiles: industrial measurement, positioning, identification and inspection stations
- Power
- 10-30 VDC; 0.5-1.5 A reference
- Protection
- IP67
- Image sensor
- 2 MP global-shutter CMOS, 1600 x 1200 pixels
- Focus range
- Standard: 50-1000 mm adjustable; wide view: 50-500 mm adjustable
- Lighting
- White or red LED; blue LED can be customized for special models
- Inspection tools
- Spot, edge, pattern, circle and line presence tools with position correction
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
SEV450 / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Small-part measurement and position checks
- Production identification and OCR
- Guided inspection stations with multiple stored recipes
Browse by device capability
- Measurement, positioning, identification and inspection tools cover more than simple barcode capture.
- Standard and wide-view focus ranges let the station geometry drive the selected sensor variant.
- RS232, RS485, Ethernet and isolated I/O support integration with controllers and host software.
- Measurement repeatability and OCR performance must be established with calibrated samples and production lighting.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Data capture
| Image sensor | 2 MP global-shutter CMOS, 1600 x 1200 pixels |
|---|
Power and physical
| Power | 10-30 VDC; 0.5-1.5 A reference |
|---|
Environmental
| Protection | IP67 |
|---|---|
| Environment | Operating 0 to +50 C; storage -20 to +70 C; 5-95% RH non-condensing |
Other configuration
| Focus range | Standard: 50-1000 mm adjustable; wide view: 50-500 mm adjustable |
|---|---|
| Lighting | White or red LED; blue LED can be customized for special models |
| Inspection tools | Spot, edge, pattern, circle and line presence tools with position correction |
| Measurement | Line angle, diameter, brightness, contrast, width, pitch and spot-area tools are listed |
| Identification | 1D/2D barcode recognition, online classification, detection and OCR learning |
| Recipes | Plan import and export with storage for up to 32 plans |
| I/O and protocols | Two inputs, three optocoupler outputs, TCP/UDP, RS232, RS485 and USB 2.0 |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Select standard or wide view, lens distance, lighting, trigger, recipe, I/O, protocol and mounting with the line owner.
- Test measurement repeatability, calibration, glare, motion, contamination, code quality and line-speed behavior.
- Confirm electrical protection, network segmentation, image or result retention, maintenance and machine-safety scope.
Deployment accessories
- Scope power, lens or focus arrangement, lighting, mounting, trigger wiring, Ethernet or serial cabling and enclosure.
- Keep calibration records, recipes, samples, controller mapping, firmware and maintenance access notes with the handover.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Measure dimensional repeatability, position accuracy, code reads and OCR results on representative samples.
- 02
Verify trigger timing, I/O states, protocol messages, recipe selection, network recovery and controller faults.
- 03
Freeze the exact view, focus, lighting, calibration, firmware, wiring, protocol and acceptance limits.
