SEUIC (Dongji) / Fixed RFID readers

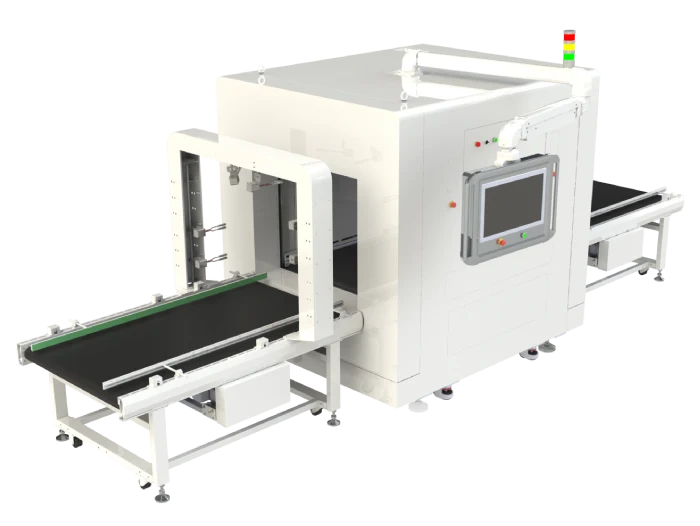

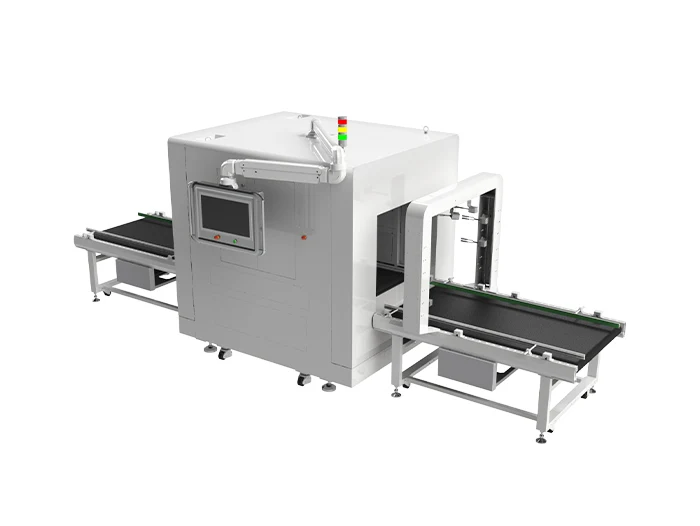

RFID Gate Reader: Fixed RFID readers
RFID Gate Reader is listed in the fixed rfid readers portfolio for fixed-point RFID visibility. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: portal, shelf, workstation and fixed-point RFID deployments
- Touch screen type
- 10-point capacitive touch screen
- Reading distance
- 65mm to 1000mm adjustable
- Default power supply
- AC 220V, 50±3HZ (can be adjusted according to local power standards)
- Shell protection level
- IP65
- Dimensions (length, width and height)
- Front conveyor line size: 1700mm*1030mm*650mm (height adjustable 100mm) · Front conveyor line outer packaging size: 1820mm*1250mm*1200mm · Reading area outer size: 1500mm*1610mm*1918.5mm · Reading area outer packaging size: 2260mm*1910mm*2230mm · Rear conveyor line size: 1700mm*1030mm*650mm (height adjustable 100mm) · Rear conveyor line outer packaging size: 1820mm*1250mm*950mm
- Accuracy
- ＞99.99%
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where RFID Gate Reader fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Dock-door and portal reads
- Shelf or cabinet visibility
- Workstation and conveyor identification
Key capabilities
- A fixed RFID reader entry; antenna layout, reader density, cabling and RF environment must be validated on site.
- Portfolio fit: portal, shelf, workstation and fixed-point RFID deployments.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Storage temperature | -20°C ~70°C |
|---|---|
| Touch screen type | 10-point capacitive touch screen |
Data capture
| sensor | CMOS image sensor with global shutter |
|---|---|
| Reading distance | 65mm to 1000mm adjustable |
Power and physical
| button | Power button, emergency stop button, reset button |
|---|---|
| Dimensions (length, width and height) | Front conveyor line size: 1700mm*1030mm*650mm (height adjustable 100mm) · Front conveyor line outer packaging size: 1820mm*1250mm*1200mm · Reading area outer size: 1500mm*1610mm*1918.5mm · Reading area outer packaging size: 2260mm*1910mm*2230mm · Rear conveyor line size: 1700mm*1030mm*650mm (height adjustable 100mm) · Rear conveyor line outer packaging size: 1820mm*1250mm*950mm |
| weight | Total weight: net weight 1367kg, gross weight 1797kg (error ±10kg) · Front conveyor line weight: net weight 211kg, gross weight 309kg (error ±10kg) · Reading area weight: net weight 963kg, gross weight 1202kg (error ±10kg) · Rear conveyor line weight: net weight 193kg, gross weight 286kg (error ±10kg) |
| Default power supply | AC 220V, 50±3HZ (can be adjusted according to local power standards) |
| power | The maximum power of the whole machine is 3500W, and the standby power is <100w |
| Support code system | 1D: Code128, GS1 128, Code39, Code93, codabar, cross 25 code, EAN/UPC · 2D: QR, DataMatrix(ECC200), PDF417, Micro PDF417 |
| Protocols supported by Ethernet | TCP/UDP、Modbus TCP、EtherNet/IP、Profinet |
| net weight | 3.45kg |
Environmental
| Shell protection level | IP65 |
|---|---|
| working temperature | 0°~50°C |
| ambient humidity | 5% to 95% RH without condensation |
| working environment | No dust or corrosive gases |
Other configuration
| Accuracy | ＞99.99% |
|---|---|
| Read quantity | ＞4000 pieces |
| shielding effect | <10cm (when the electric door is closed, the transmitting power is 33dB) |
| door opening speed | ≤1 second |
| Conveyor line speed | 0m/s-1.2m/s (adjustable) |
| working mode | Photoelectric induction trigger |
| status indication | Three-color status indicator light, buzzer |
| Mobile/Fixed | Universal wheel/fixed feet |
| Image pixels | 2 million pixels, 1920*1080 |
| lighting source | Red high-brightness LED*8+blue low-angle light |
| sight | Laser Dual Dot Positioning Sight Class II |
| focus adjustment | auto focus |
| resolution | 1D Code：3.3mil · 2D Code：2.0mil |
| Ambient brightness | | 0~10000 lux |
| Supply voltage | 10~30V DC |
| Current consumption | 0.2 ~ 0.7A |
| size | 72(H)× 52(W)× 40.5(T) mm |
| color | matte silver |
| Appearance size | 522.5mm×314 mm×49.5mm |
| Opening size | 506mm×297.5mm |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Plan antennas, brackets, cables, power, network, enclosure and commissioning support for the installation.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
