SEUIC (Dongji) / Barcode scanners
HS525 Series: Barcode scanners

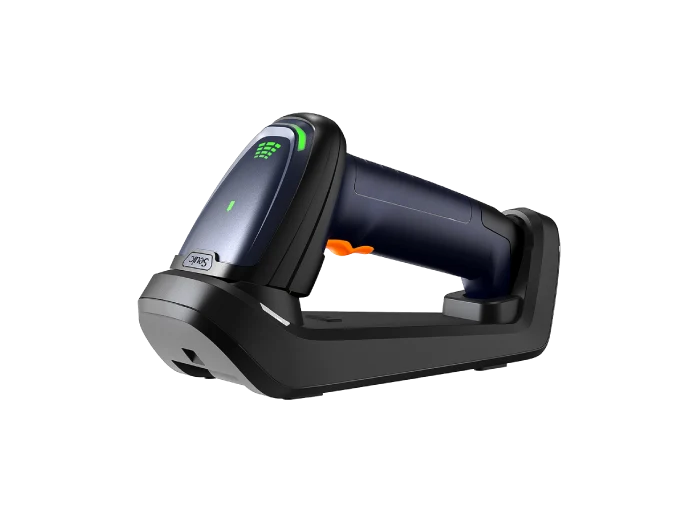

SEUIC (Dongji) HS525 Series is a wireless industrial barcode scanner for difficult direct-part marks and precision manufacturing. The official page lists global-shutter imaging, adjustable diffuse lighting, DP and HDP resolution options, Bluetooth or wired host paths, removable power, batch storage and IP54 protection.
Suggested profiles: wireless electronics, production, quality and workstation barcode capture
- Battery
- 3150 mAh rated or 3500 mAh typical removable battery; up to 5000 barcodes in batch mode is listed
- Protection
- The primary block is listed as IP54 with a 1.8 m drop reference; the second block is listed as IP51 with a 1.2 m drop reference
- Wireless and host
- Open-air wireless distance up to 100 m is listed; RS232, USB keyboard and USB COM modes are also described
- Image sensor
- 1280 x 1080 CMOS global-shutter sensor
- Lighting
- Adjustable diffuse white, red or blue lighting with laser cross aiming
- Capture rate
- Up to 60 frames per second
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
HS525 Series / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Precision manufacturing and electronics traceability
- Wireless production or quality stations
- Workstation scanning where batch capture is useful
Browse by device capability
- Wireless operation removes cable constraints while keeping USB and RS232 host modes available.
- DP and HDP options, adjustable lighting and a global-shutter sensor target difficult direct marks.
- Removable power and batch storage support stations where the scanner moves between host or network coverage areas.
- The page has more than one physical block, so dimensions, protection, battery and radio must be resolved by SKU.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Wireless and host | Open-air wireless distance up to 100 m is listed; RS232, USB keyboard and USB COM modes are also described |
|---|
Data capture
| Image sensor | 1280 x 1080 CMOS global-shutter sensor |
|---|
Power and physical
| Code support | 1D Code 39, Code 128, Code 93, Codabar, UPC/EAN and I2of5; 2D QR, DataMatrix, PDF417 families; OCR customization is listed |
|---|---|
| Battery | 3150 mAh rated or 3500 mAh typical removable battery; up to 5000 barcodes in batch mode is listed |
Environmental
| Protection | The primary block is listed as IP54 with a 1.8 m drop reference; the second block is listed as IP51 with a 1.2 m drop reference |
|---|---|
| Environment | Primary operating range 0 to +50 C and storage -20 to +70 C; exact block requires confirmation |
Other configuration
| Lighting | Adjustable diffuse white, red or blue lighting with laser cross aiming |
|---|---|
| Capture rate | Up to 60 frames per second |
| Resolution | DP: 1D 2.5 mil / 2D 4 mil; HDP: 1D 2 mil / 2D 3 mil |
| Physical configurations | The source lists 166.2 x 105.5 x 68.5 mm at about 226 g and a second 219.3 x 88.4 x 62.3 mm block at about 179 g; confirm the SKU |
| Compliance listing | CE, FCC, RoHS and UN38.3 are listed; verify the exact SKU and destination evidence |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Resolve the physical block, optics, lighting, wireless profile, host mode, battery and charging accessories before the pilot.
- Test DPM, curved, perforated, low-contrast and damaged codes at actual distance, angle, motion and lighting.
- Confirm wireless coexistence, reconnect, batch policy, destination compliance, cleaning and spare-battery handling.
Deployment accessories
- Scope the exact scanner body, spare batteries, charger, stand or mount, USB or serial cable and protective parts.
- Keep the wireless pairing, host profile, scan settings, batch policy and approved code samples with the handover.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Measure first-pass reads, misses, duplicates and batch behavior for the target code set and surface conditions.
- 02
Test wireless range, reconnect, USB or RS232 modes, battery endurance, charging and operator feedback.
- 03
Record the selected physical block, optics, interface, firmware, radio, accessories and acceptance result.
