SEUIC (Dongji) / Barcode scanners
HS200C: Barcode scanners

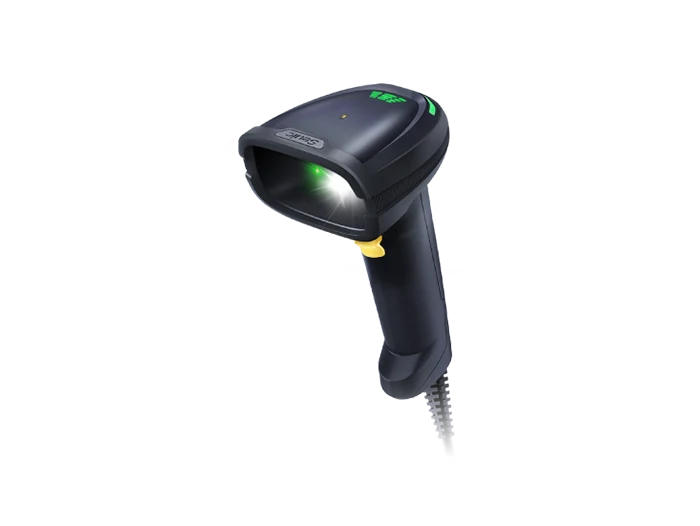

SEUIC (Dongji) HS200C is a wired industrial barcode scanner for retail, logistics and factory stations. The official page lists high-density and standard-range options, a 1280 x 1024 sensor, 60 fps capture, USB or RS-232 host interfaces, IP54 protection and difficult-code use cases.
Suggested profiles: wired retail, logistics, production and workstation barcode capture
- Protection
- IP54; industrial plastic housing listed
- Dimensions
- 166.2 x 68.5 x 105.5 mm
- Image sensor
- 1280 x 1024 CMOS sensor
- Camera options
- High-density and standard-range options listed
- Frame rate
- 60 fps
- Lighting and aimer
- White LED illumination with circular-point LED aiming
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
HS200C / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Production and quality stations
- Parcel, shipping and warehouse desks
- Retail counters and workstation capture
Browse by device capability
- Wired scanner format for stable retail, logistics and production stations.
- High-density and standard-range options support different code sizes and working distances.
- USB keyboard, USB COM and RS-232 modes make the host contract explicit.
- The difficult-code positioning is a manufacturer description; pass rates require target samples and lighting tests.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Frame rate | 60 fps |
|---|---|
| Host interfaces | RS-232, USB keyboard and USB COM |
Data capture
| Image sensor | 1280 x 1024 CMOS sensor |
|---|---|
| Camera options | High-density and standard-range options listed |
Power and physical
| Dimensions | 166.2 x 68.5 x 105.5 mm |
|---|---|
| Weight | 148 g +/-3 g |
Environmental
| Protection | IP54; industrial plastic housing listed |
|---|---|
| Drop and impact | Manufacturer lists 50 drops from 1.8 m and 2000 tumbles at 0.5 m |
| Environment | Operating 0-50 C; storage -20 to +70 C; 5-95% RH non-condensing |
Other configuration
| Lighting and aimer | White LED illumination with circular-point LED aiming |
|---|---|
| Decode density | 1D codes to 3 mil; 2D codes to 5 mil listed |
| Ambient light | 0-100,000 lux listed |
| ESD | Manufacturer lists +/-15 kV air and +/-8 kV direct discharge |
| Regulatory listing | CE, FCC and RoHS are listed on the manufacturer page; verify the exact SKU and destination evidence |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Choose high-density or standard-range optics, mount, cable, interface mode and trigger behavior with the station owner.
- Test wrinkled, reflective, damaged, micro and low-contrast codes at the actual distance and lighting.
- Verify destination compliance documents, host drivers, power budget, reconnect behavior and maintenance access before rollout.
Deployment accessories
- Scope the stand, mounting hardware, USB or serial cable, power arrangement and replacement cable plan.
- Keep approved code samples, host profile and cleaning or service instructions with the station handover.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Measure reads, misses and duplicate events for the full target symbology and code-quality range.
- 02
Test USB and RS-232 modes, trigger timing, host latency, reconnect and application exception handling.
- 03
Record the selected optics, interface, firmware, mount, cable, compliance evidence and acceptance result.
Project intake
HS200C / Start with enough context to make the next step useful.
Choose the closest project intent and describe only non-confidential workflow, application and deployment requirements.
