SEUIC (Dongji) / Document cameras
G12: Document cameras

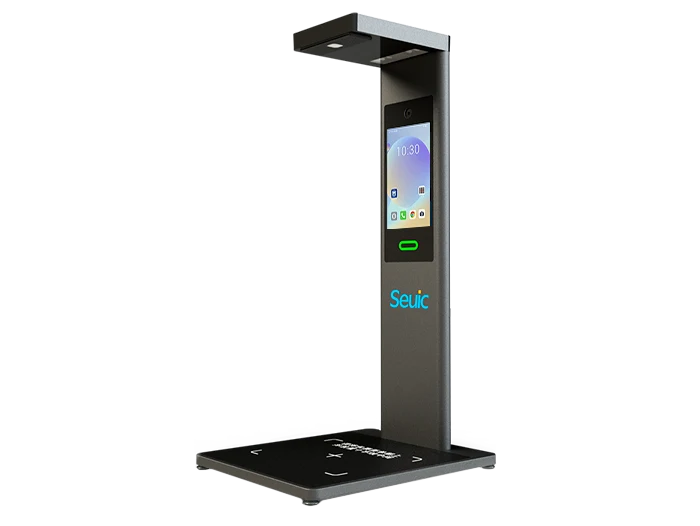

SEUIC (Dongji) G12 is a fixed warehouse entry and exit terminal for batch barcode reading, outbound positioning and traceability photography. The official page lists Android 12, a 10.1 inch touch display, 8 MP barcode imaging, Ethernet, Wi-Fi, Bluetooth and a 12 V station power design.
Suggested profiles: fixed warehouse entry, exit, parcel and outbound traceability stations
- Operating system
- Android 12.0
- Display
- 10.1 inch capacitive touch display, 1280 x 800 pixels
- Barcode camera
- 8 MP, 3840 x 2160 pixels; Code 128 at 10 mil depth of field up to 450 mm is listed
- Power and physical
- 12 VDC / 3 A, 36 W maximum; 490 x 410 x 920 mm; less than 10 kg
- Communications
- Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0, USB 3.0, USB 2.0 host and USB OTG
- Configuration
- G12-P10-F200-0432 is identified on the official page
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
G12 / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- Warehouse inbound and outbound gates
- Parcel and cargo traceability
- Fixed stations that need phone-screen and multi-barcode capture
Browse by device capability
- The fixed format is designed around warehouse entry and exit rather than handheld operation.
- An 8 MP camera, wide field and multi-barcode capture support parcel or outbound traceability.
- Android, Ethernet, USB, Bluetooth and a decoding SDK leave the host integration boundary visible.
- The listed G12 configuration and station software must be confirmed before ordering or deployment.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Operating system | Android 12.0 |
|---|---|
| Compute and storage | 64-bit six-core processor up to 2.0 GHz; 4 GB RAM / 32 GB storage |
| Display | 10.1 inch capacitive touch display, 1280 x 800 pixels |
Data capture
| Barcode camera | 8 MP, 3840 x 2160 pixels; Code 128 at 10 mil depth of field up to 450 mm is listed |
|---|
Connectivity
| Communications | Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0, USB 3.0, USB 2.0 host and USB OTG |
|---|
Power and physical
| Power and physical | 12 VDC / 3 A, 36 W maximum; 490 x 410 x 920 mm; less than 10 kg |
|---|
Environmental
| Environment | Operating -10 to +60 C; storage -30 to +70 C; 20-80% RH non-condensing |
|---|
Other configuration
| Configuration | G12-P10-F200-0432 is identified on the official page |
|---|---|
| Capture field | At least 450 x 350 mm barcode field; simultaneous multi-barcode and phone-screen capture are described |

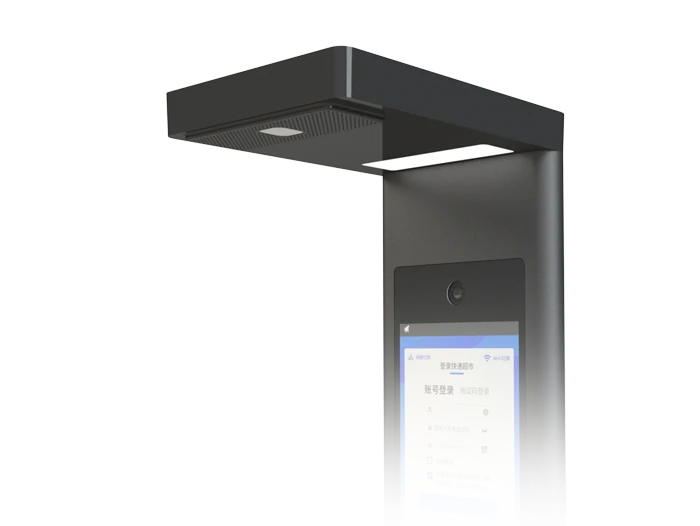

| Lighting and feedback | Software-adjustable LED fill light, RGW status light and stereo 5 W x 2 speakers |
| Software scope | Customized ROM with E-FUSE and remote OTA wording plus a standard decoding SDK are listed; exact support requires confirmation |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Design the station footprint, camera field, label position, lighting, user prompts, network and host interface.
- Test mixed parcel sizes, dirty or incomplete labels, screen codes, simultaneous reads, glare and line speed.
- Confirm the G12-P10-F200-0432 configuration, ROM, SDK, OTA policy, power, privacy and service access.
Deployment accessories
- Scope the 12 V/3 A adapter, station stand or cabinet, network cabling, USB peripherals and protective hardware.
- Keep the decoding profile, host API, OTA policy, exception flow and maintenance instructions with the handover.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Measure first-pass reads, multi-barcode behavior, field coverage and phone-screen capture on representative cargo.
- 02
Test Android application, SDK, Ethernet, USB, Bluetooth, lighting, audio, OTA and power recovery.
- 03
Freeze the identified configuration, station layout, software image, firmware, peripherals and acceptance limits.
