SEUIC (Dongji) / Document cameras

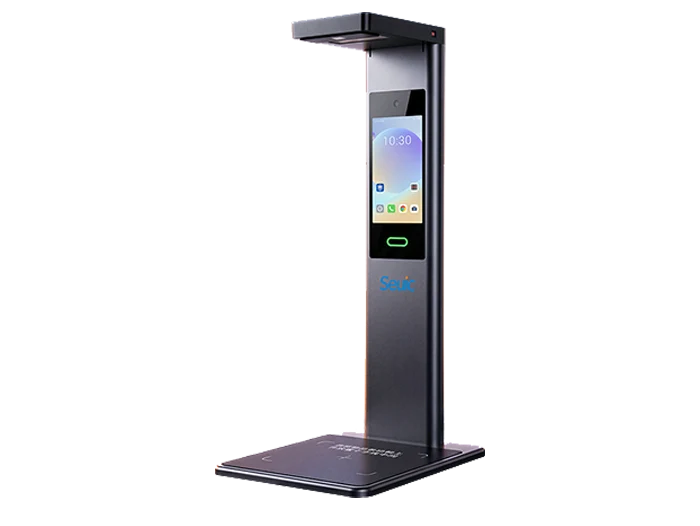

DJ10: Document cameras
DJ10 is listed in the document cameras portfolio for document, parcel and visual record capture. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: document capture, parcel processing and counter workflows
- Display |
- 10.1-inch touch LCD screen, resolution 800×1280
- Code reading camera resolution |
- 8 million pixels
- power
- Maximum 36W
- Communications |
- Gigabit Ethernet, 2.4/5GHz dual-band WiFi, Bluetooth
- weight
- Net weight 8kg
- model
- DJ10
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where DJ10 fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Parcel intake and dispatch records
- Document and ID capture
- Service-counter verification
Key capabilities
- A document-camera entry for capture at a workstation or service point; resolution, lighting, software and host integration require confirmation.
- Portfolio fit: document capture, parcel processing and counter workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Memory (RAM) | | 4GB |
|---|---|
| Storage (ROM) | | 16GB |
| operating system | | Android 11 |
| Display | | 10.1-inch touch LCD screen, resolution 800×1280 |
| Storage temperature | | -30℃~70℃ |
Data capture
| Code reading camera resolution | | 8 million pixels |
|---|---|
| Scan code vision | | 450mm × 350mm |
| Scan depth of field | 450mm @10mil Code128 |
| Barcode category | Supports simultaneous decoding of multiple barcodes; supports scanning the identity code displayed on the mobile phone screen · 1D: Code128, GS1 128, Code39, Code93, codabar, cross-25 code, EAN/UPC · 2D: QR, DataMatrix (ECC200), PDF417, Micro PDF417, etc. |
| Face Camera | | 2 million pixels |
Connectivity
| Communications | | Gigabit Ethernet, 2.4/5GHz dual-band WiFi, Bluetooth |
|---|
Power and physical
| Interface | | RJ45*1，HDMI*1，USB3.0*1，USB2.0*1 |
|---|---|
| button | Power switch*1 |
| weight | Net weight 8kg |
| power | Maximum 36W |
Environmental
| working temperature | -20℃~50℃ |
|---|
Other configuration
| model | DJ10 |
|---|---|
| Device Master | | Processor 4 cores |
| TF card | | 128G |
| light source | White LED light source, supports software adjustment of brightness |
| Indicator light | | RGW Color Changing LED Status Indicator |
| Alert tone | | Stereo dual speakers 5W*2 |
| Equipment size | Length 490mm × Width 410mm × Height 895mm |
| Accessories | | | 12V/3A wall plug power adapter, cord length 2m |
| Warm reminder | | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm stand, lighting, cable, host software, image retention and operator workflow.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make DJ10 part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
