SEUIC (Dongji) / Handheld RFID readers

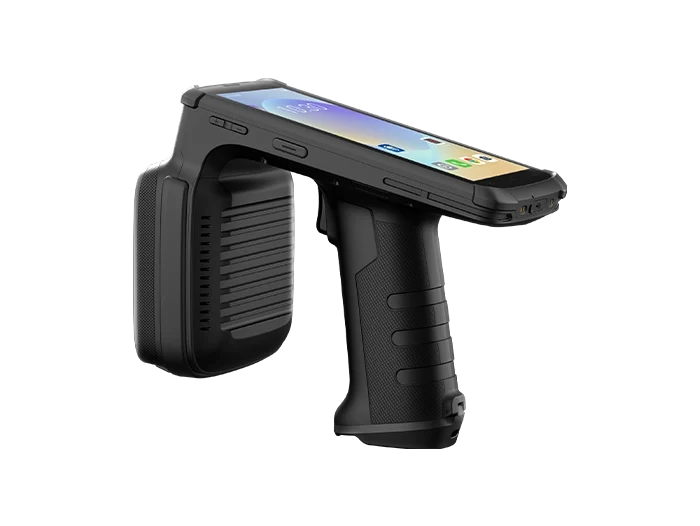

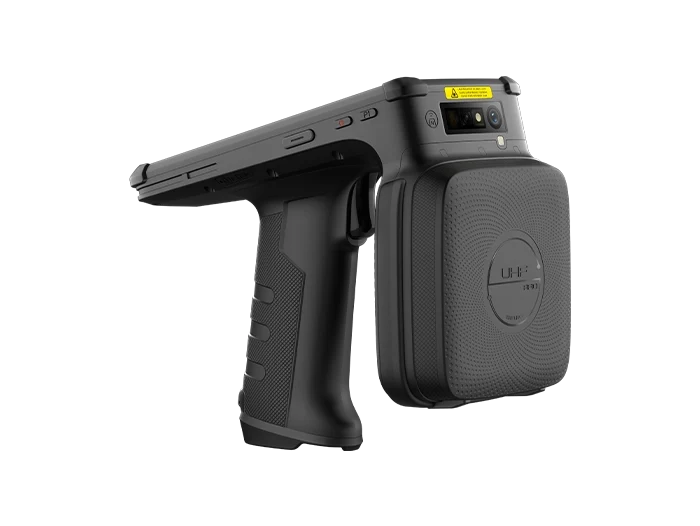

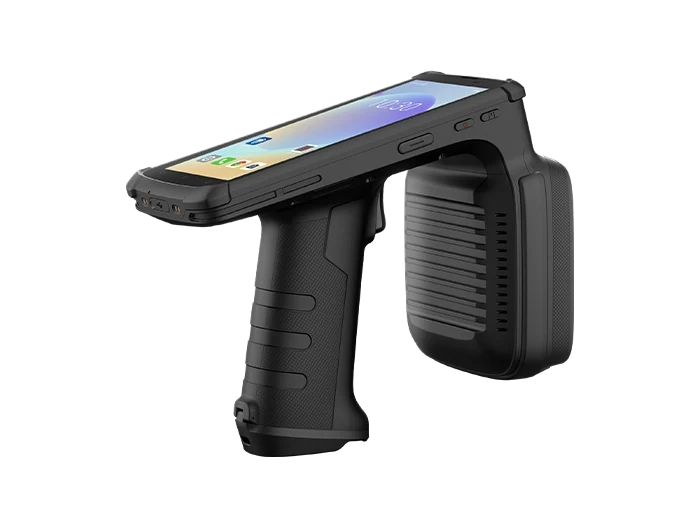

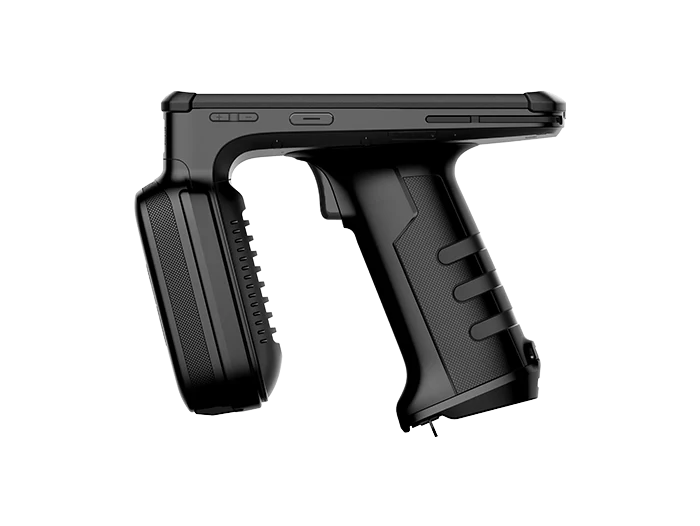

AUTOID UTouch 2-30: Handheld RFID readers
SEUIC (Dongji) AUTOID UTouch 2-30 is an integrated Android UHF RFID handheld for long-range inventory and high-density tag operations. The official page describes a 30 m-plus range and a 1000-tags-in-3-seconds reference, while the parameter table lists additional tag, antenna and region conditions that must be validated in the target environment.
Suggested profiles: long-range inventory, asset tracking, yard and high-density RFID operations
- Operating system
- Android 14
- Memory
- 6 GB RAM / 64 GB storage; optional 8 GB / 128 GB
- Display
- 5.5 inch capacitive display, 1440 x 720 pixels
- Barcode scanning
- 2D imager with 1080 x 1280 pixels and 60 fps listed
- Battery
- At least 11700 mAh combined removable power: 5000 mAh main unit plus 6700 mAh handle battery
- Wireless
- Dual-band Wi-Fi 6-ready profile; North America and Eurasian WWAN blocks are listed separately
The exact model, regional configuration and commercial terms require project confirmation.
Browse by device capability
AUTOID UTouch 2-30 / Browse by device capability
UROVO is the primary established product resource, with SEUIC (Dongji) and selected platforms used where the capture method, form factor or deployment requirement needs another option. Published models follow an evidence, regional-configuration and RuggedLayer validation path.
Suggested profiles
- High-bay inventory and cycle counts
- Yard, asset and tool tracking
- Receiving or exception workflows with mixed barcode and RFID capture
Browse by device capability
- An integrated handle and large battery target long-range, high-density RFID work without a separate sled.
- Barcode, HF/NFC and UHF capture support mixed identification workflows on one handheld platform.
- The manufacturer presents 30 m-plus and fast tag-reading references; tag, antenna, power and site conditions determine actual behavior.
- Regional wireless and UHF settings must be resolved before any cross-border quotation or deployment.
How a device enters the portfolio
Key specifications
Manufacturer-listed configuration; confirm the exact variant before ordering.
Platform
| Operating system | Android 14 |
|---|---|
| Processor | Eight-core, 2.0 GHz |
| Memory | 6 GB RAM / 64 GB storage; optional 8 GB / 128 GB |
| Display | 5.5 inch capacitive display, 1440 x 720 pixels |
Data capture
| Barcode scanning | 2D imager with 1080 x 1280 pixels and 60 fps listed |
|---|---|
| Camera | 13 MP autofocus rear camera with PDAF and flash; 5 MP fixed-focus front camera |
| HF/NFC | 13.56 MHz; ISO15693 and ISO14443A/B without encryption protocol are listed |
Connectivity
| Wireless | Dual-band Wi-Fi 6-ready profile; North America and Eurasian WWAN blocks are listed separately |
|---|
Power and physical
| Dimensions | 159 x 78 x 133 mm |
|---|---|
| Weight | 715 g including battery; configuration dependent |
| Battery | At least 11700 mAh combined removable power: 5000 mAh main unit plus 6700 mAh handle battery |
Environmental
| Environment | Operating -20 to +50 C; storage -40 to +60 C with battery and -40 to +70 C without battery; 5-95% RH |
|---|
Other configuration
| Controls | Power, volume, UHF, scan, custom and handle buttons |
|---|---|
| UHF radio | FHSS or fixed-frequency mode; 1-33 dBm output; antenna and regional band require confirmation |
| UHF reference | 0-10 m write-in reference on a U9 white card; actual distance depends on tag and environment |
| UHF throughput | The parameter table lists up to 1300 frames per second; the page title also states 1000 tags in 3 seconds |
| Durability | IP67; multiple 1.5 m drops and +/-15 kV air / +/-8 kV direct ESD references listed |
| Accessories | Power adapter and Type-C cable standard; single cradle, quad battery charger, grip battery and hand strap optional |
A final shortlist depends on the application, scan or RFID workload, operating environment, country, deployment volume and support expectations.
A clear handoff at every layer
Five service layers for a more predictable device program.
RuggedLayer organizes access to multiple manufacturers into a consistent engagement model. Each layer has a defined input, deliverable and evidence boundary.
Service layers
- Confirm the handle battery, memory, barcode engine, UHF region, antenna profile and application SDK before ordering.
- Design the pilot around representative tags, materials, orientation, distance, density, motion and interference.
- Treat the 30 m, 1000-tags-in-3-seconds and 1300-frames-per-second figures as manufacturer references, not acceptance results.
Deployment accessories
- Plan the standard power and USB-C kit plus cradles, spare handle batteries, hand straps and operator carry equipment.
- Provide a charging and battery rotation plan for the heavier integrated-handle device and the intended shift.
RuggedLayer Test Lab
Define a useful test, not a vague benchmark.
Tell us the labels, tags, application and operating conditions that matter.
- 01
Measure read, write, miss, duplicate and stray events with the target tags at the intended distances and orientations.
- 02
Test barcode, HF/NFC and UHF handoff behavior with the production application, offline mode and host synchronization.
- 03
Freeze regional RF settings, antenna, power, firmware, radio profile, accessory set and acceptance thresholds.
Project intake
AUTOID UTouch 2-30 / Start with enough context to make the next step useful.
Choose the closest project intent and describe only non-confidential workflow, application and deployment requirements.
